Description

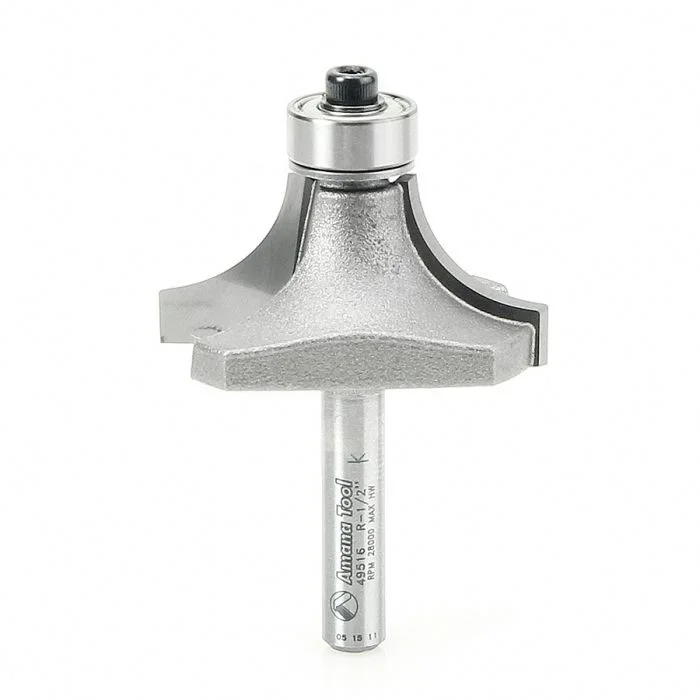

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868589516 |
| Includes |
47706 Bearing |
| PDFs |
- 47739 Catalog
- 47708 Catalog
|
| Replacement Bearing |
47706 |
| Type |
Corner Rounding |
| Ball Bearing |
Lower |
| Cut Height(B) |
3/4″ |
| Cutting Diameter(D) |
1/2 x 1 1/2″ |
| Diameter(D) |
1 1/2″ |
| Flutes |
2 |
| Length(L) |
2 1/4″ |
| Material |
Carbide Tip |
| Overall Length(L) |
2 1/4″ |
| Radius |
1/2″ |
| Radius(R) |
1/2″ |
| RPM |
28,000 RPM |
| Shank |
1/4″ |
| Shank(d) |
1/4″ |
| Tool No. |
49516 |
| Diameter(D) |
1 1/2″ |
| Radius(R) |
1/2″ |
| Cutter Height(B) |
3/4″ |
| Shank(d) |
1/4″ |
| Overall Length(L) |
2 1/4″ |
| Replacement Bearing |
47706 |
| Flutes |
2 |
| Diameter(D1) |
1/2″ |
| Max. RPM |
28,000 RPM |
