Description

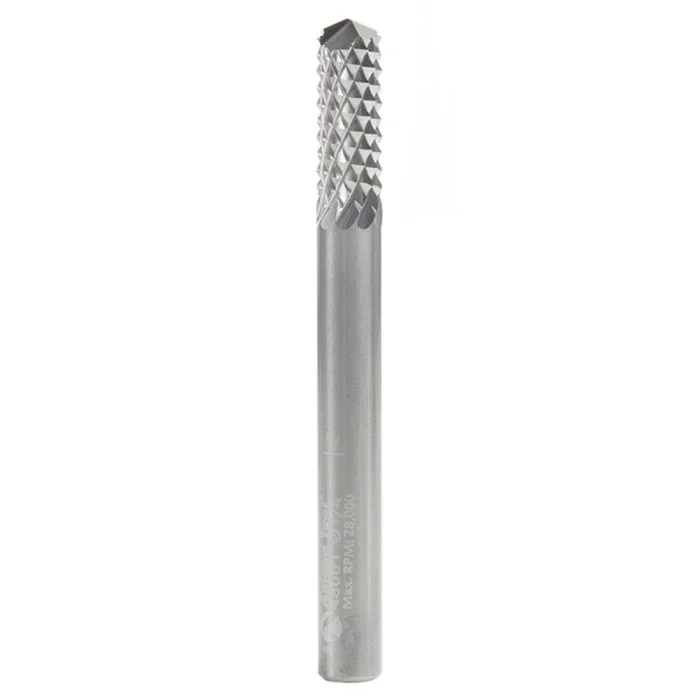

Amana Tool’s FiberGlass Router (FGR) burs incorporate reciprocating diamond-fluted geometry strong negative rake angles and generous fluting to provide the best cutting action in a wide variety of woven resin bond fiberglass and composite materials.
Combining the proven performance of a diamond-cut geometry with the capacity to plunge while leaving a minimum of top-side burr. 135º drillpoint minimizes part deflection on thin or otherwise unsupported workpieces.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00738685480014 |
| Material | Solid Carbide |
| Type | Router Bit |
|---|---|
| Diameter (D) | 1/4″ |
| Cutting Height (B) | 3/4″ |
| Shank Diameter (d) | 1/4″ |
| Overall Length (L) | 2 1/2″ |
| Style | Drill End |
| Application | Carbon Fiber, Edging and Slotting All Carbon Fiber Reinforced Polymer – Plastic Materials (CFRP), Composite Materials, Fiberglass, Fiberglass PCB Board, Fiber Reinforced Plastic (FRP), Glass Reinforced Plastic (GRP), G10 / FR-4 and G11 / FR-5 Glass Epoxy Composite Laminate Material, Micarta (Brand Name for Composites of Linen, Canvas, Paper, Fiberglass, Carbon Fiber or Other Fabric in a Thermosetting Plastic.), Phenolic, Thermoset Composites, Thermosetting Plastics |
| Surface Feet Per Minute / Chip Load Per Tooth (Carbon, Carbon Graphite, Unfilled Plastics) | 1,600 – 3,200 / 0.0025″ – 0.0040″ |
| Surface Feet Per Minute / Chip Load Per Tooth (Composites) | 1,200 – 2,800 / 0.0008″ – 0.0020″ |
| Surface Feet Per Minute / Chip Load Per Tooth ( Fiberglass Filled Plastics) | 1,200 – 2,800 / 0.0008″ – 0.0020″ |
| Surface Feet Per Minute / Chip Load Per Tooth (Green Ceramic, Green Carbide ) | 800 – 1,600 / 0.0015″ – 0.0030″ |
| Operating RPM | 18,000 RPM |
