Description

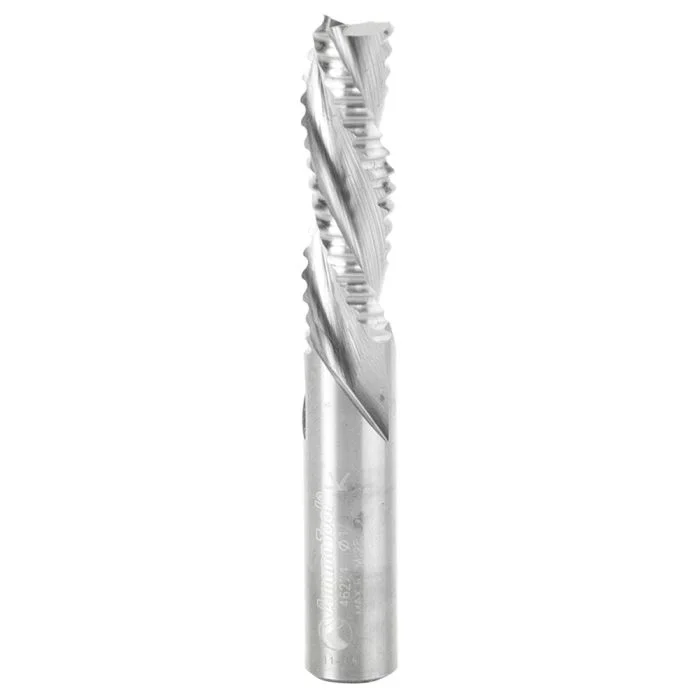

Specially designed for high RPM/feed rate CNC routers. Unique chipbreaker design is available with ‘Up-Cut’ or ‘Down-Cut’. Will leave a wavy striated finish.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868546224 |
| Application |
Wood, Veneered Plywood, Laminate |
| Flutes |
3 |
| Material |
Solid Carbide |
| Type |
Router Bit |
| Direction |
Down-Cut |
| Diameter (D) |
1/2″ |
| Cutting Height (B) |
1 5/8″ |
| Shank Diameter (d) |
1/2″ |
| Overall Length (L) |
4″ |
| Style |
Roughing Spiral |
| Recommended Speed (RPM) |
20,000 – 21,000 RPM |
| Feed Rate IPM* / Chip Load Per Tooth (MDF) |
760″ – 900″ / 0.014″ – 0.016″ |
| Feed Rate IPM* / Chip Load Per Tooth (Veneered Plywood) |
900″ – 1000″ / 0.016″ – 0.018″ |
| Feed Rate IPM* / Chip Load Per Tooth (Wood) |
800″ – 900″ / 0.015″ – 0.017″ |
