Description

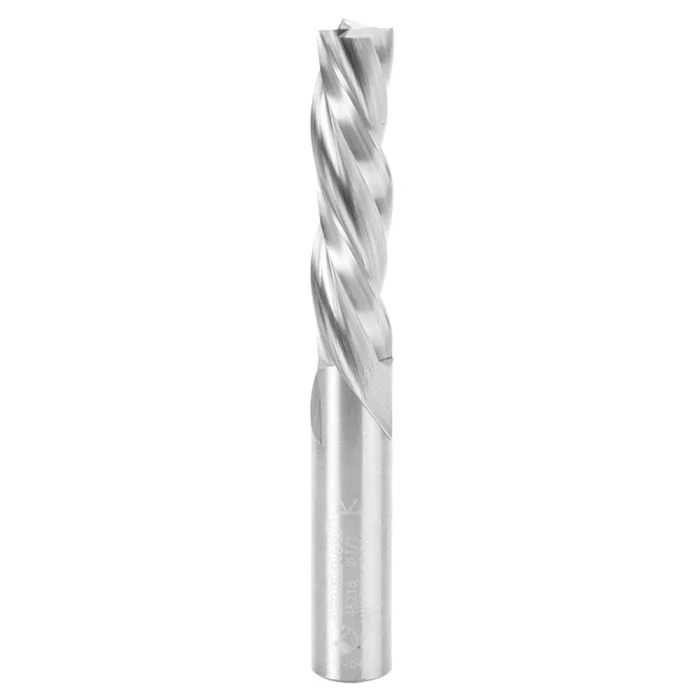

Down-Cut’ spiral. Three-flute design for very high quality finish.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868546218 |
| Application | For Production Settings and Excellent for Creating Grooves and Dado Cuts in Softwood, Hardwood, Plywood, and Composite Materials |
| Flutes | 3 |
| Material | Solid Carbide |
| Type | Router Bit |
|---|---|
| Direction | Down-Cut |
| Diameter (D) | 1/2″ |
| Cutting Height (B) | 2″ |
| Shank Diameter (d) | 1/2″ |
| Overall Length (L) | 4″ |
| Style | Spiral Plunge |
| Recommended Speed (RPM) | 20,000 – 21,000 RPM |
| Maximum Speed (RPM) | 28,000 RPM |
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood) | 300″ / .0057″ / 100″ |
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 500″ / .0096″ / 167″ |
