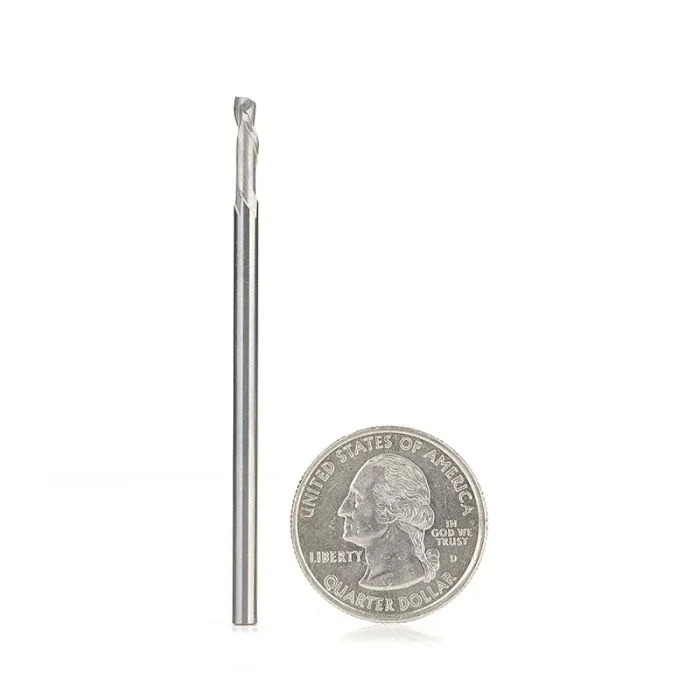

Description
Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.
*Oriented Strand Board is an engineered wood particle board.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00738685461372 |
| Flutes | 1 |
| Material | Solid Carbide |
| Type | Router Bit |
|---|---|
| Diameter (D) | 1/8″ |
| Cutting Height (B) | 3/8″ |
| Cutting Height (B1) | 5/32″ |
| Shank Diameter (d) | 1/8″ |
| Overall Length (L) | 2 1/2″ |
| Flutes Type | Compression Spiral |
| Recommended Speed (RPM) | 20,000-21,000 RPM |
| Application | Laminate, Laminated Plywood, Melamine, Melamine Particle Board, MDF/HDF, Oriented Strand Board (OSB)*, Particle Board, Softwood/Hardwood, Veneered Plywood |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (Wood / Plywood / Plastic) | 60″ / .0031″ / 60″ |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 110″ / .0062″ / 110″ |
