Description

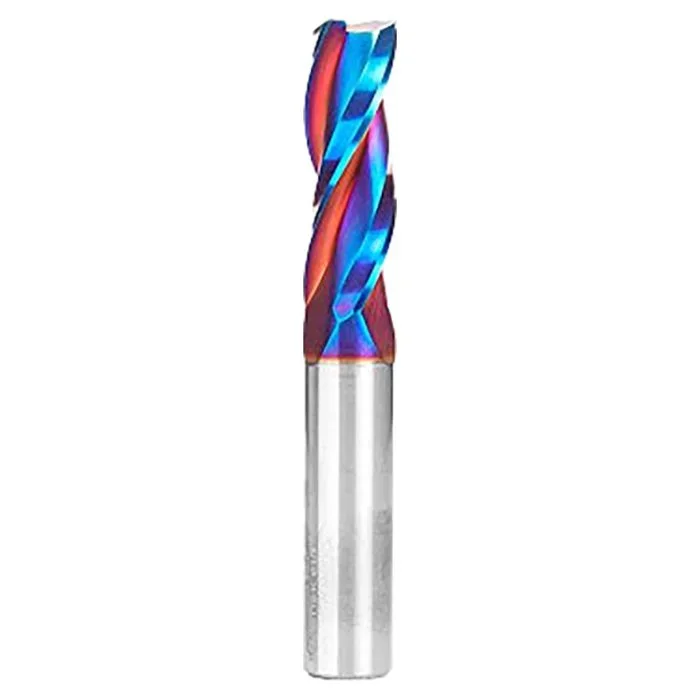

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| Features |
- nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance
- Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
- ‘Up-Cut’ spiral. Three-flute design for very high quality finish
- Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and prevents melting
|
| Application |
For Creating Grooves and Dado Cuts in Softwood, Hardwood, Plywood and Composite Materials |
| Flutes |
3 |
| Material |
Carbide Tip |
| Type |
Router Bit |
| Direction |
Up-Cut |
| Diameter (D) |
1/2″ |
| Cutting Height (B) |
1 1/2″ |
| Shank Diameter (d) |
1/2″ |
| Overall Length (L) |
3 1/2″ |
| Coating |
Spektra Extreme Tool Life |
| Flute Type |
Spiral Plunge |
| Recommended Speed (RPM) |
20,000 – 21,000 RPM |
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood) |
300″ / .0057″ / 100″ |
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) |
500″ / .0096″ / 167″ |
