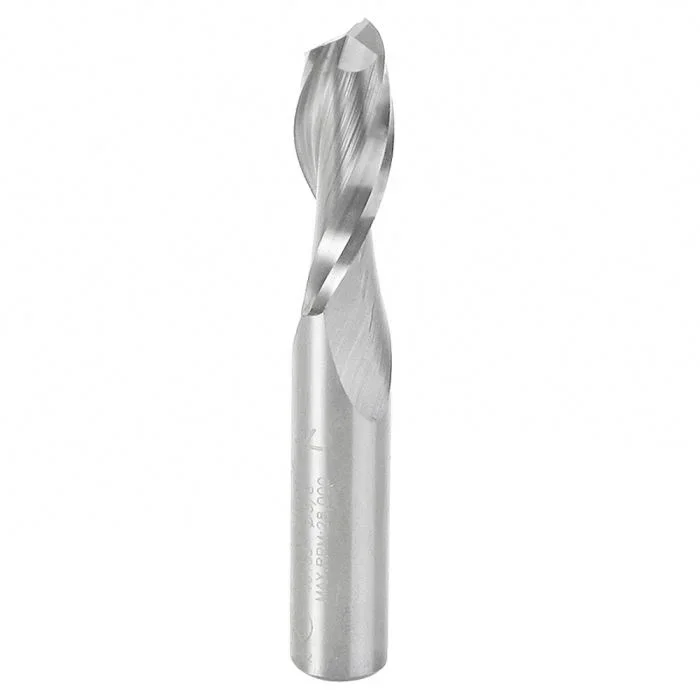

Amana Tool 46103 3/8″ Solid Carbide Up-Cut Spiral Plunge Router Bit

Original price was: $12.05.Current price is: $2.88.

SKU: emankkud90570 Category:

Description

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

More Information
Manufacturer Amana Tool Corp.
Condition New
UPC 73868530164
Features
  • The Up-Cut shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool with an excellent choice for mortising
  • Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate
  • Primarily used on CNC machines and other automatic routers
  • Can be used with handheld and table-mounted portable routers
Type Router Bit
Ball Bearing No
Cutter Height(B) 1″
Cutting Depth 1″
Diameter(D) 3/8″
Flutes 2
Length(L) 2 1/2″
Material Solid Carbide
Overall Length(L) 2 1/2″
Shank 3/8″
Shank(d) 3/8″
Tool No. 46103
Diameter(D) 3/8″
Cutter Height(B) 1″
Shank(d) 3/8″
Overall Length(L) 2-1/2″
Flutes 2
Plunge Type Spiral Plunge
Max. RPM 28,000 RPM
Direction Up-Cut
