Description

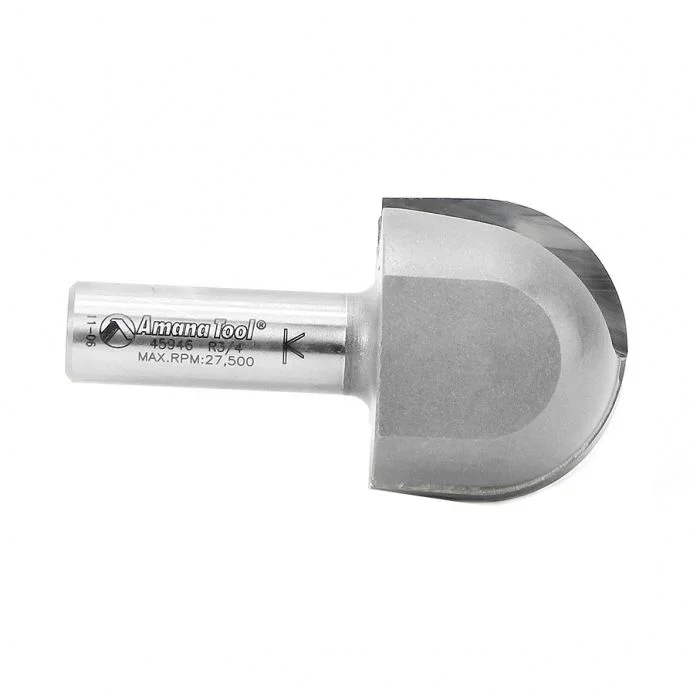

Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868585946 |
| Features |
- Cut much deeper flutes than possible with a regular core box bit
|
| PDFs |
|
| Application |
High Density Urethane (HDU Board), Laminate, MDF, Softwood/Hardwood, Veneered Plywood |
| Type |
Router Bit |
| Ball Bearing |
No |
| Cutter Height(B) |
1 1/4″ |
| Cutting Diameter(D) |
1 1/2″ |
| Diameter(D) |
1 1/2″ |
| Flutes |
2 |
| Length(L) |
2 3/4″ |
| Material |
Carbide Tip |
| Max. RPM |
18,000 RPM |
| Overall Length(L) |
2 3/4″ |
| Radius |
3/4″ |
| Radius(R) |
3/4″ |
| RPM |
18,000 RPM |
| Shank |
1/2″ |
| Shank(d) |
1/2″ |
| Tool No. |
45946 |
| Suitable for Use With |
CNC and Table Mounted Routers |
| Diameter(D) |
1-1/2″ |
| Cutter Height(B) |
1-1/4″ |
| Shank(d) |
1/2″ |
| Overall Length(L) |
2-3/4″ |
| Flutes |
2 |
| Radius(R) |
3/4″ |
| Max. RPM |
27,500 RPM |
