Description

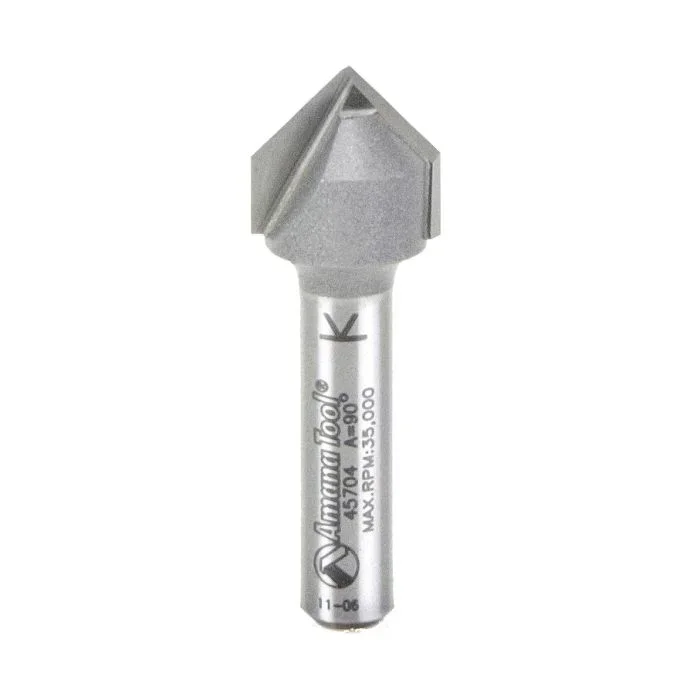

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868585704 |
| Features |
- Cut decorative V grooves and lettering on signs with these V Groove bits
- Use with an edge guide to chamfer and bevel edges
- Can be used with handheld, table mounted and CNC routers
|
| PDFs |
- 47739 Catalog
- 47708 Catalog
|
| Application |
20lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board |
| Type |
Router Bit |
| Angle(a°) |
90 Deg |
| B1 |
1/4″ |
| Ball Bearing |
No |
| Cutter Height(B) |
1/2″ |
| Cutting Diameter(D) |
1/2″ |
| Diameter(D) |
1/2″ |
| Flutes |
2 |
| Length(L) |
1 5/8″ |
| Material |
Carbide Tip |
| Overall Length(L) |
1 5/8″ |
| RPM |
35,000 RPM |
| Shank |
1/4″ |
| Shank(d) |
1/4″ |
| Tool No. |
45704 |
| Suitable for Use With |
CNC Machines and Routers |
| Diameter(D) |
1/2″ |
| Cutter Height(B) |
1/2″ |
| Shank(d) |
1/4″ |
| Overall Length(L) |
1-5/8″ |
| Flutes |
2 |
| Cutter Height(B1) |
1/4″ |
| Angle (a°) |
90 Deg |
| Style |
V-Groove |
| Max. RPM |
35,000 RPM |
