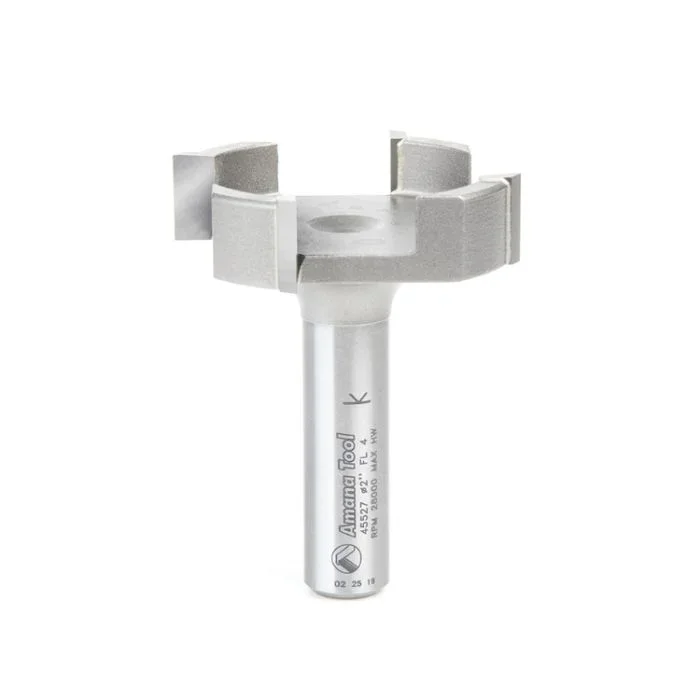

Name: Amana Tool 45527 2″ x 1/2″ Carbide Tipped Router Bit
SKU: ugkafmjg37234
Availability: InStock

Description

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

More Information
Manufacturer	Amana Tool Corp.
Condition	New
Features	Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing Exclusive carbide grade for highest quality of cut Maximum cutting efficiency Faster material removal process Perfect for Resurfacing spoilboards using CNC Planing large glued up panels using CNC Surfacing and finishing wood using timber slab machines Rabbeting or slotting
Flutes	4
Material	Carbide Tip

Type	Router Bit
Diameter (D)	2″
Cutting Height (B)	1/2″
Shank Diameter (d)	1/2″
Overall Length (L)	2 1/2″
Maximum Speed (RPM)	28,000 RPM
Wings	4-Wing
IPM* / Chip Load Per Tooth (Plywood/Chipboard)	160″ / 0.002″
IPM* / Chip Load Per Tooth (Hardwood)	150″ / 0.002″
IPM* / Chip Load Per Tooth (MDF)	250″ / 0.004″
IPM* / Chip Load Per Tooth (Softwood)	160″ / 0.002″
IPM* / Chip Load Per Tooth (Plastic)	150″ / 0.002″
Suitable for Use with	Router Sled Machines
Application	For Planing, Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer and Flattening, and for planing and rabbeting in MDF, Fiberboard, HDF/LDF, Balsa Core
