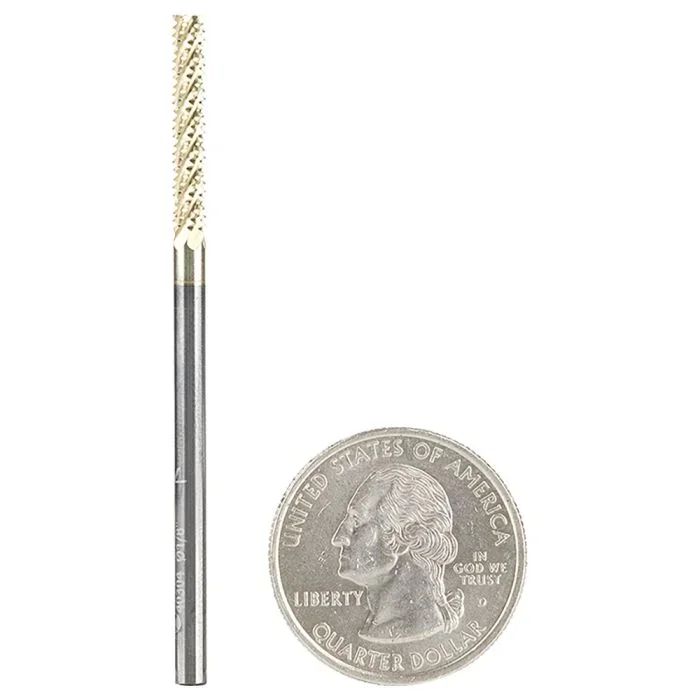

Name: Amana Tool 40304 1/8″ CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger Router Bit
SKU: ovipccqv67563
Availability: InStock

Description

Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface. Amana Tool’s “hogger” style routers for honeycomb composites incorporate a precision-ground “knuckle” profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.

Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

More Information
Manufacturer	Amana Tool Corp.
Condition	New
Features	Benefits of ZrN Coating: Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting High resistance to wear Extended tool life Less friction and heat buildup High resistance to wear
Application	For Honeycomb, Composite Materials, Acrylonitrile-Butadiene-Styrene (ABS), Lexan
Flutes	6
Material	Solid Carbide

Type	Router Bit
Diameter (D)	1/8″
Cutting Height (B)	13/16″
Shank Diameter (d)	1/8″
Overall Length (L)	2 1/2″
Maximum Speed (RPM)	25,000 RPM
Coating	Zirconium Nitride (ZrN)
Cutting Edge Type	Honeycomb Cutting
Style	Hogger
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Aluminum Honeycomb)	800 – 1,200 / 320″ – 540″ / 0.003″ – 0.005″
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Aramid Honeycomb)	1,200 – 1,600 / 210″ – 430″ / 0.002″ – 0.004″
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Carbon Laminates (Nomex, Kevlar))	1,100 – 1,400 / 210″ – 430″ / 0.002″ – 0.004″
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Tedlar)	1,400 – 1,600 / 110″ – 320″ / 0.001″ – 0.003″
