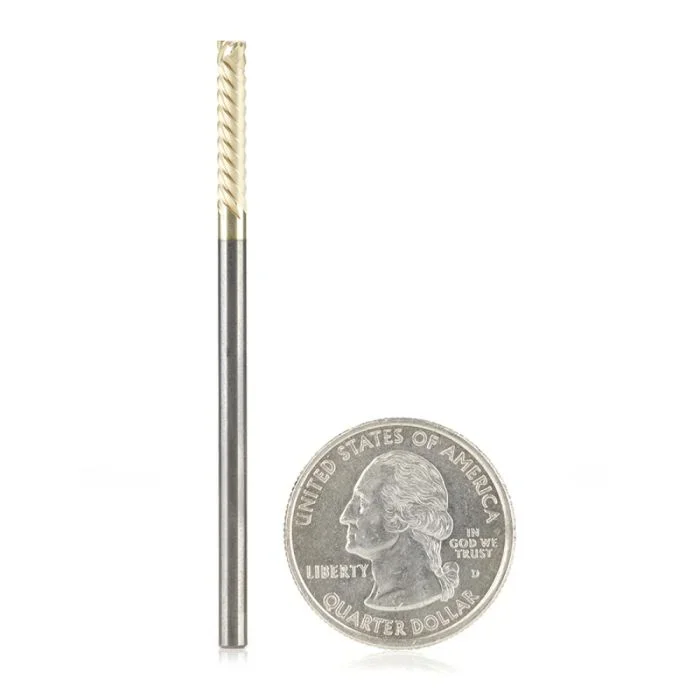

Name: Amana Tool 40301 1/8″ CNC Compression Honeycomb Cutting Router Bit
SKU: lcfjvmwo53643
Availability: InStock

Description

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”.

Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.

More Information
Manufacturer	Amana Tool Corp.
Condition	New
UPC	00738685403013
Features	Benefits of ZrN Coating: Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting High resistance to wear Extended tool life Less friction and heat buildup
Flutes	6
Material	Solid Carbide

Type	Router Bit
Diameter (D)	1/8″
Cutting Height (B)	5/8″
Cutting Height (B1)	1/8″
Shank Diameter (d)	1/8″
Overall Length (L)	2 1/2″
Maximum Speed (RPM)	28,000 RPM
Style	Compression
Coating	ZrN Coated
Spindle Speed SFM* / Feed Rate / Chip Load Per Tooth (Carbon, Carbon Graphite, Unfilled Plastics)	500 – 1,500 / 40″ – 80″ / 0.0004″ – 0.0007″
Spindle Speed SFM* / Feed Rate / Chip Load Per Tooth (Composites)	300 – 800 / 30″ – 65″ / 0.0003″ – 0.0006″
Spindle Speed SFM* / Feed Rate / Chip Load Per Tooth (Fiberglass Filled Plastics)	300 – 700 / 40″ – 100″ / 0.0004″ – 0.0010″
Spindle Speed SFM* / Feed Rate / Chip Load Per Tooth (Honeycomb Flute Cardboard)	500 – 1,500 / 40″ – 100″ / 0.0004″ – 0.0010″
Spindle Speed SFM*/ Feed Rate / Chip Load Per Tooth (Aluminum Honeycomb Panel)	500 – 1,000 / 40″ – 100″ / 0.0004″ – 0.0010″
Application	For Cutting Acrylonitrile-Butadiene-Styrene (ABS), Aluminum Honeycomb Panel (AHP), BioBoard, Carbon, Carbon Fiber, Carbon Graphite, Composites, Falconboard, Fiberglass Filled Plastics, Honeycomb Cardboard, Lexan, Unfilled Plastics
