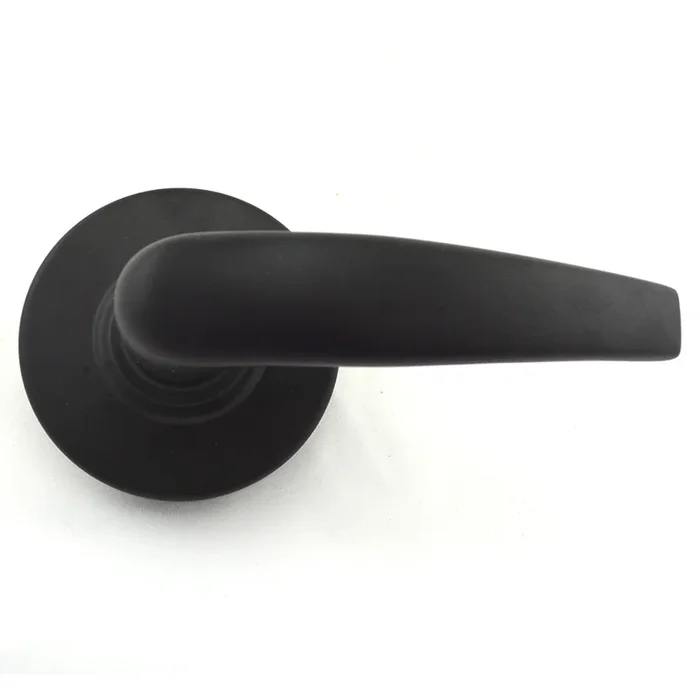

Schlage ALX170 ATH 622 ALX Series Grade 2 Athens Lever Trim – Matte Black Dummy
Schlage Commercial ALX170ATH622 ALX Series Grade 2 Single Dummy Athens Lever Trim showcases a sleek and modern design, perfect for enhancing both functionality and aesthetic appeal in commercial settings. Finished in a sophisticated matte black, this single dummy trim is designed to complement a variety of decors while providing a robust solution for door applications. Engineered for durability, the ALX170ATH622 is ANSI/BHMA certified under A156.2 standards, ensuring it meets rigorous performance criteria. It fits doors ranging from 1-3/8″ to 1-3/4″ thick and is UL listed for 3-hour fire doors, providing peace of mind for safety-conscious professionals. The reversible handing allows for flexible installation, making it suitable for left or right-hand doors. Constructed from steel and zinc dichromated materials, this product not only promises longevity but also a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, underscoring Schlage’s commitment to quality. The Athens lever design paired with the stylish Rhodes rose offers a contemporary touch, elevating the overall look of your doors. Ideal for institutional buildings or multi-family residences, the Schlage ALX170ATH622 is the perfect blend of style and security for any architectural project.
ALX Series Grade 2 Single Dummy Athens Lever Trim Matte Black Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Single Dummy – Dummy Trim for One Side of Door
- ANSI/BHMA Certified A156.2
- 1-3/8″ to 1-3/4″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
- Exceeds grade 2 strength: Stainless steel latchbolt.
- Expanded cylinder support:
- Accepts all Schlage plus five competitive cylinder formats.
- High security locking when used with Primus XP UL 437 listed cylinders.
- Maximum utility:
- One chassis fits all functions and cores to minimize inventory.
- Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site configuration.
- Exceptional durability:
- Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble.
- Grade 1 compression springs.
- Extreme installation simplicity:
- Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment.
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
- Function flexibility:
- Patent pending chassis design allows quick, in-field function set up.
- Field reversible Vandlgard® to non-Vandlgard locked lever engagement.
- Expansive lever offering:
- 10 total designs. (Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Saturn, Sparta, & Tubular.)
- Perfectly suited to Schlage ND Series grade 1 locks.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ALX170ATH622, SCHALX170ATH622
Ansi: A156.2-2011 Series 4000, Grade 2
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Athens Lever
Dimension: 4-9/16″ Lever with 3-5/16″ Projection and 3-7/16″ Rose
Door Application: Cylindrical Levers
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8″ to 1-3/4″
Faceplate Style: Square Corner
Finish: Matte Black
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish : Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: Single Dummy
Function Family: Dummy
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keyway Brand: Schlage
Lever Design: Athens
Lever Knob: Lever
Lever Knob Design: Athens Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Manufacturer: Schlage Lock Company
Manufacturer Function: Single Dummy Trim
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
PO date: 2024-09-29
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 3-5/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Resources
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Von Duprin Finishes Chart
