ALX Series Grade 2 Privacy Sparta Lever Lock – Aged Bronze Finish

Description

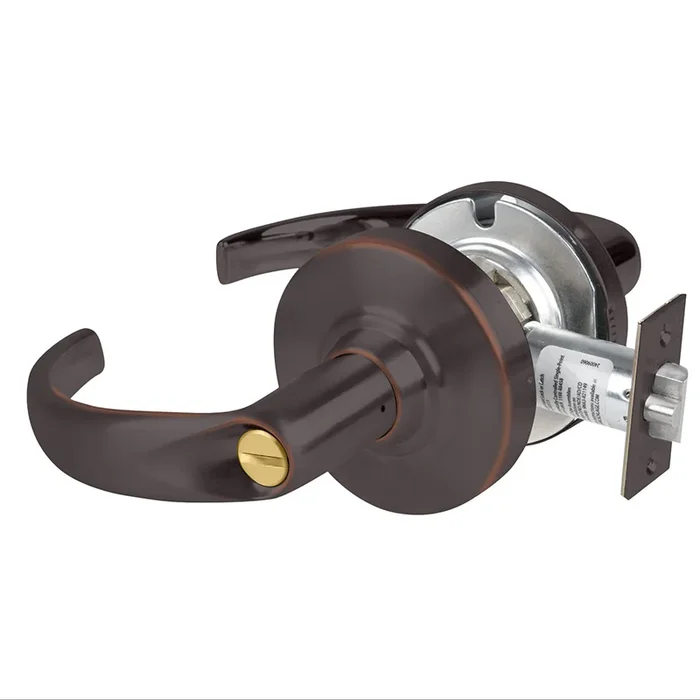

Schlage ALX40 SPA 643e ALX Series Grade 2 Privacy Sparta Lever Lock, Aged Bronze Finish

Schlage Commercial ALX40SPA643E ALX Series Grade 2 Privacy Sparta Lever Lock combines style and functionality for today’s commercial environments. Designed to accommodate doors ranging from 1-3/8″ to 1-3/4″ thick, this lockset features a 2-3/4″ backset and a 2-1/8″ crossbore size, ensuring a precise fit for various installations. The Sparta Lever design offers an elegant touch while providing ease of use. Constructed from durable steel and finished in a rich Aged Bronze, the ALX40SPA643E not only enhances security but also withstands the rigors of daily use. Its reversible handing allows for versatile installation options, making it suitable for a variety of door configurations. The lockset includes a 47267038 spring latch and a 47267101 ANSI strike, ensuring reliable operation and compliance with industry standards. With a UL listing for 3-hour fire doors, this lockset provides peace of mind without compromising on aesthetics. The 10-year limited warranty underscores Schlage’s commitment to quality, assuring you of its long-lasting performance. Choose the Schlage Commercial ALX40SPA643E for a lock that merges innovative design with dependable security.

ALX Series Grade 2 Privacy Sparta Lever Lock with 47267038 2-3/4″ Springlatch and 47267101 ANSI Strike Aged Bronze Finish

• Passage – Both Levers Always Unlocked
• ANSI/BHMA Certified A156.2
• 1-3/8″ to 1-3/4″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.2-2011 Series 4000, Grade 2

Ansi Function: F76 – Privacy

Ansi Function : Privacy

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bolt Protection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Design: Sparta Lever

Dimension: 4-15/16″ Lever with 3-1/2″ Projection and 3-7/16″ Rose

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8 In. – 1-3/4 In.

Finish: Aged Bronze

Finish Code: 643E

Finish : Aged Bronze

Finish Family: Dark Bronze

Fire Rated: Yes {Variable}

Fire Rating: 3 Hours {A}

Function: 40-Bed Bathroom Privacy Lock

Function Family: Privacy

Grade: Grade 2

Hand: Non-handed

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 7/8 In.

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Latch Number: 47267038

Latch Type: Springlatch

Lever Knob: Lever

Lever Knob Design: SPA – Sparta Lever

Lever Knob Design Family: Curved Return Lever

Lever Knob Design Name: Sparta

Leverknob Design: SPA – Sparta Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Bath/Bedroom Privacy Lock

Manufacturer Function : Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.

Manufacturer Warranty: 10 Year Limited Warranty

Material: Steel, Zinc Dichromated

Maximum Door Thickness: 1-3/4 In.

Minimum Door Thickness: 1-3/8 In.

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Product Height: 4.5″

Product Length: 9.25″

Product Width: 8.13″

Projection: 3-1/2 In.

Restrictions: None

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16″ Rose Diameter

Rose Escutcheon Dimensions: Rhodes

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: Rhodes

Screws: Combination

Series: ALX Series

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 47267038

Std Latch Type: Springlatch

Std Strike Height: 4-7/8″

Std Strike Number: 47267101

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Strike Height: 4-7/8 In.

Strike Number: 47267101

Strike Type: ANSI Strike

Strike Width: 1-1/4 In.

Structure Function: 40

Structure Latch: S

Structure Latch Number: 47267038

Structure Outside Finish: 643E

Structure Outside Trim: SPA

Structure Series: ALX

Structure Strike Number: 47267101

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each
