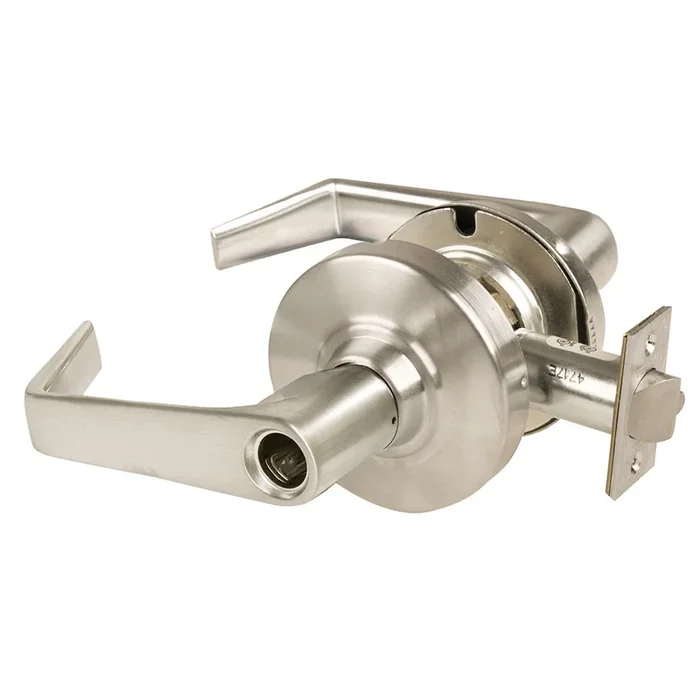

ALX Series Grade 2 Entry Office Saturn Lever Lock Less Cylinder

Description

Schlage ALX50L SAT 619 ALX Series Grade 2 Saturn Lever Lock, Deadlatch ANSI Strike, Satin Nickel

Schlage Commercial ALX50LSAT619 ALX Series Grade 2 Entry Office Saturn Lever Lock Less Cylinder offers robust security solutions tailored for commercial environments. Designed for entry office applications, this lock features a push-button mechanism that secures the outside lever until unlocked by a key or rotating the inside lever, ensuring ease of access while maintaining security. Designed to accommodate doors ranging from 1-3/8″ to 1-3/4″ in thickness, this mechanical lockset fits seamlessly into various installations. The 2-3/4″ backset and ANSI/BHMA certified A156.2 rating guarantee reliable performance and compliance with industry standards. Additionally, the lock is UL listed for 3-hour fire doors, providing peace of mind in safety-critical situations. The durable satin nickel finish enhances its aesthetic appeal while contributing to its longevity, and the Saturn lever design combines style with functionality. Built from steel and zinc dichromated materials, this lockset is engineered for resilience and everyday use. The limited 10-year mechanical and 3-year electro-mechanical warranty reflects Schlage’s commitment to quality craftsmanship. With the Schlage Commercial ALX50LSAT619, you can trust that your office entry points are equipped with a reliable locking solution that balances security and accessibility.

ALX Series Grade 2 Entry Office Saturn Lever Lock Less Cylinder with 47267042 2-3/4″ Deadlatch and 47267101 ANSI Strike Satin Nickel Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Office Entry – Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Lever
• ANSI/BHMA Certified A156.2
• 1-3/8″ to 1-3/4″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.2-2011 Series 4000, Grade 2

Ansi Function: F82 – Entry

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Cylinder Type: Less Cylinder

Cylinders Present: Single Cylinder

Design: Saturn Lever

Dimension: 4-7/16″ Lever with 2-15/16″ Projection and 3-7/16″ Rose

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8″ to 1-3/4″

Finish: Satin Nickel

Finish Code: 619

Finish : Satin Nickel Plated Clear Coated

Finish Family: Matte Silver

Fire Rated: Yes {Variable}

Fire Rating: 3 Hours {A}

Function: Entry Office

Function Family: Entrance

Grade: Grade 2

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Latch Bore Diameter: 7/8 In.

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob: Lever

Lever Knob Design: Saturn Lever

Lever Knob Design Name: Saturn

Leverknob Design: SAT – Saturn Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Entrance/Office Lock

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Steel, Zinc Dichromated

Maximum Door Thickness: 1-3/4 In.

Minimum Door Thickness: 1-3/8 In.

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 4.75″

Pack Length: 9.5″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Width: 8.25″

Pbs Options: 4541275

Pins: 6

Product Height: 4.5″

Product Length: 9.25″

Product Width: 8.13″

Projection: 2-15/16 In.

Restrictions: None

Rose Escutcheon: Rose

Rose Escutcheon Design: Rhodes Rose

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: Rhodes

Screws: Combination

Series: ALX Series

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 47267042

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 47267101

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each
