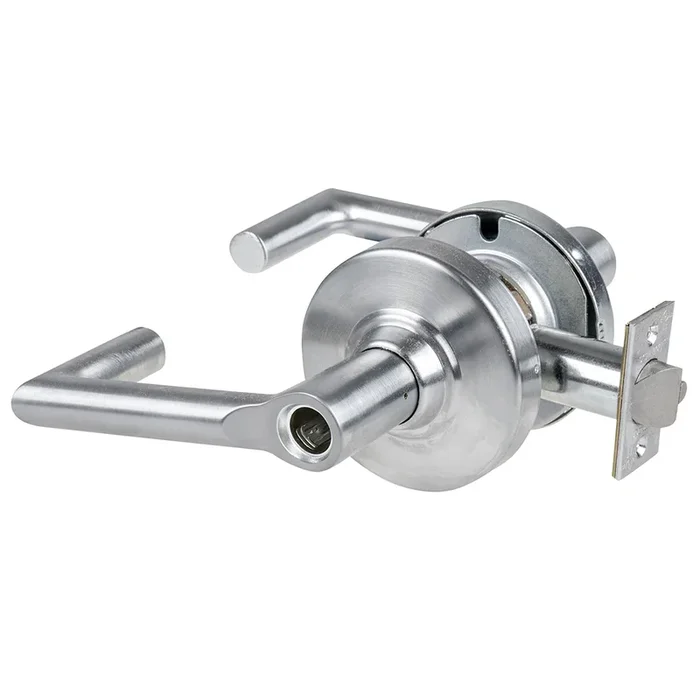

ALX Series Grade 2 Entry Boardwalk Lever Lock – Schlage Commercial

Description

Schlage ALX53L BRK 626 ALX Series Grade 2 Entry Lever Lock, Deadlatch ANSI Strike, Satin Chrome

Schlage Commercial ALX53LBRK626 ALX Series Grade 2 Entry Boardwalk Lever Lock Less Cylinder combines durability with style for commercial applications. Designed with a 2-3/4″ backset and a robust steel construction, this lockset ensures long-lasting performance in high-traffic areas. Its sleek satin chrome finish not only enhances aesthetic appeal but also provides resistance to wear and tarnishing. Featuring a Boardwalk lever design, the lock is easy to operate while the Rhodes rose escutcheon adds a touch of elegance. The 2-1/8″ crossbore size with two 5/16″ post holes simplifies installation, making it suitable for doors ranging from 1-3/8″ to 1-3/4″ thick. With an ANSI strike and a latch faceplate dimension of 1-1/8″ x 2-1/4″, this lockset provides secure and reliable entry control. Reversible handing allows for versatile installation options, accommodating various door orientations. Additionally, the ALX53LBRK626 is UL listed for 3-hour fire doors, ensuring safety compliance in commercial settings. Backed by a 10-year limited warranty, this lockset is an excellent choice for building professionals and knowledgeable homeowners seeking quality and reliability in door hardware solutions.

ALX Series Grade 2 Entry Boardwalk Lever Lock Less Cylinder with 47267042 2-3/4″ Deadlatch and 47267101 ANSI Strike Satin Chrome Finish

• Entry – Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
• ANSI/BHMA Certified A156.2
• 1-3/8″ to 1-3/4″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Ansi Function: F109 – Entry/Office

Ansi Function : Entry/Office

Backset: 2-3/4″ Backset

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Category: Mechanical Commercial Locksets

Country of Origin: Mexico

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Cylinder Type: Less Conventional Cylinder

Cylinders Present: Single Cylinder

Design: Boardwalk Lever

Dimension: 4-15/16″ Lever with 3-1/16″ Projection and 3-7/16″ Rose

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8 In. – 1-3/4 In.

Dust Box: None

Finish: Satin Chrome

Finish Code: 626

Finish : Satin Chrome

Fire Rated: Yes {Variable}

Function: 53-Entrance Lock

Function Family: Entrance

Grade: Grade 2

Hand: Not Handed

Handing: Reversible

Hazardous Material: NO

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 7/8″

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Latch Number: 47267042

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: BRK – Boardwalk

Lever Knob Design Family: Return Lever

Lever Knob Design Name: Boardwalk

Limited Warranty: 10 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Entrance Lock

Manufacturer Function : Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.

Manufacturer Warranty: 10 Year Limited Warranty

Material: Steel, Zinc Dichromated

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/8″

No Of Inners: 1

Num Pins: 6

Order_ Qty: 1

Projection: 3-1/16″

Restrictions: None

Rose Escutcheon: Rose

Rose Escutcheon Design: RHO – Rhodes

Rose Escutcheon Dimensions: 3-7/16″

Screws: Combination

Series: ALX Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8 In.

Strike Number: 47267101

Strike Type: ASA

Strike Width: 1-1/4 In.

Structure Cylinder: L

Structure Function: 53

Structure Latch: D

Structure Latch Number: 47267042

Structure Outside Finish: 626

Structure Outside Trim: BRK

Structure Series: ALX

Structure Strike Number: 47267101

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL Listed for 3 Hour Fire Door
