Description

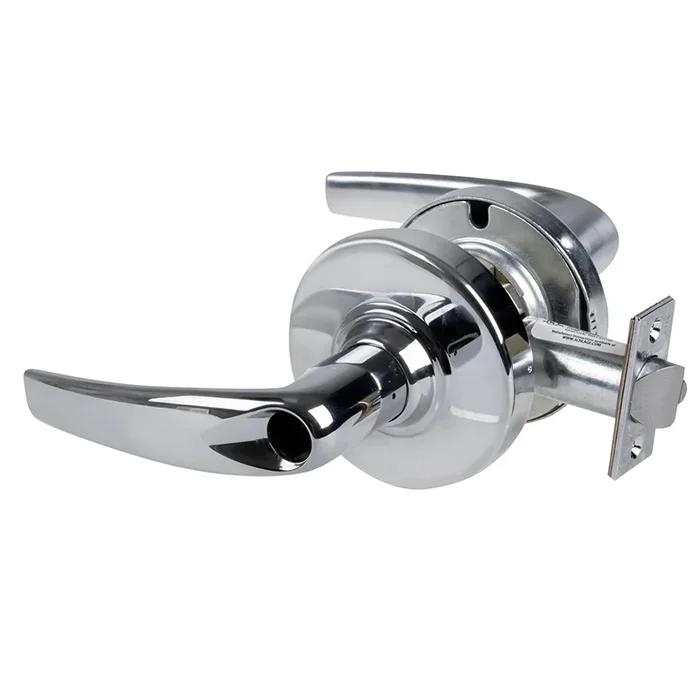

Schlage ALX53L ATH 625 ALX Series Grade 2 Athens Lever Lock, Deadlatch ANSI Strike, Chrome Finish
Schlage Commercial ALX53LATH625 ALX Series Grade 2 Entry Athens Lever Lock Less Cylinder offers a robust solution for securing commercial spaces. Designed for versatility, this entry lock features a turn/push button mechanism that can be unlocked with a key or by a rotating inside turn, providing flexible access for users. Crafted to meet ANSI/BHMA certified standards (A156.2), this lock is suitable for doors ranging from 1-3/8″ to 1-3/4″ thick, ensuring a secure fit for various applications. The ALX53LATH625 is UL Listed for 3-hour fire doors, making it an excellent choice for safety-conscious environments. Its bright chrome finish not only enhances aesthetics but also offers durability against wear and tear. This commercial-grade lockset includes a 2-3/4″ backset and features a steel and zinc dichromated construction, ensuring long-lasting performance. The Athens lever design combines functionality with style, while the Rhodes rose adds a touch of elegance. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, you can trust in Schlage’s commitment to quality and reliability. Choose the Schlage Commercial ALX53LATH625 for a blend of security, style, and durability in your commercial spaces.
ALX Series Grade 2 Entry Athens Lever Lock Less Cylinder with 47267042 2-3/4″ Deadlatch and 47267101 ANSI Strike Bright Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Entry – Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
- ANSI/BHMA Certified A156.2
- 1-3/8″ to 1-3/4″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F109 – Entry/Office
Ansi Function : Entry/Office
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Design: Athens Lever
Dimension: 4-9/16″ Lever with 3-5/16″ Projection and 3-7/16″ Rose
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8 In. – 1-3/4 In.
Finish: Bright Chrome
Finish Code: 625
Finish : Bright Chrome
Finish Family: Polished Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Latch Number: 47267042
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: ATH – Athens Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance Lock
Manufacturer Function : Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Num Pins: 6
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: 4541275
Pins: 6
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 3-5/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16″ Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Cylinder: L
Structure Function: 53
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 625
Structure Outside Trim: ATH
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Resources
- 2022 Schlage Commercial Price Book
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Schlage Finishes Chart
- Von Duprin Finishes Chart
