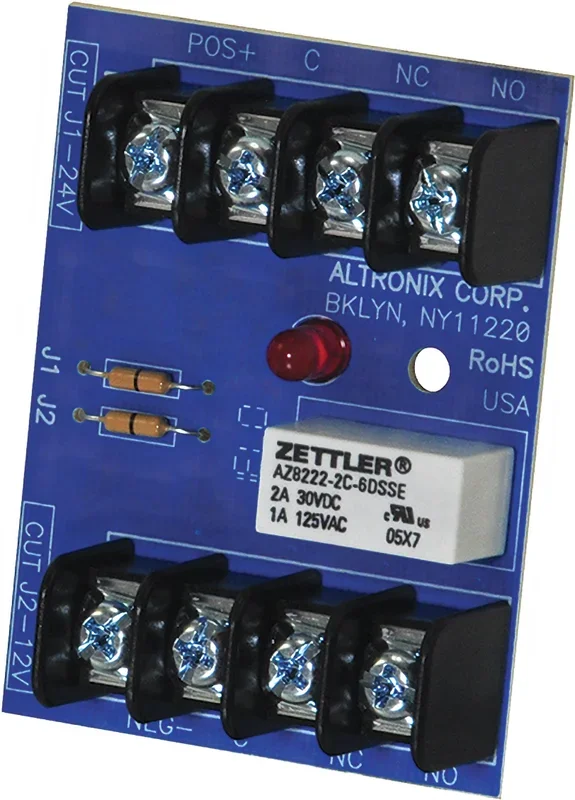

Altronix Relay Module Board Only – 6/12/24VDC, DPDT Contacts

Description

Altronix RBST Power Supply

6VDC, 12VDC or 24VDC operation Coil draw of 25mA. 2A / 120VAC /28VDC DPDT contacts.

• Input Voltage: 6VDC, 12VDC or 24VDC operation. Current draw: 30mA.
• 6VDC, 12VDC or 24VDC operation.
• Current draw: 30mA.
• Contact Rating: 1 amp/120VAC or 2 amp/28VDC DPDT contacts.
• 1 amp/120VAC or 2 amp/28VDC DPDT contacts.
• Electrical: Operating temperature: – 25º C to 55º C ambient. System AC input VA requirement: 6VDC: 1.8VA. 12VDC: 3.6VA. 24VDC: 7.2VA.
• Operating temperature: – 25º C to 55º C ambient.
• System AC input VA requirement: 6VDC: 1.8VA. 12VDC: 3.6VA. 24VDC: 7.2VA.
• 6VDC: 1.8VA.
• 12VDC: 3.6VA.
• 24VDC: 7.2VA.
• Mechanical: Snap track mountable (order part # ST1). Dimensions (W x L x H approx.): 2″ x 2.75″ x 1″ (50.08mm x 69.85mm x 25.5mm) Product weight (approx.): 0.1 lbs. (0.05 kg). Shipping weight (approx.): 0.15 lbs. (0.07 kg).
• Snap track mountable (order part # ST1).
• Dimensions (W x L x H approx.): 2″ x 2.75″ x 1″ (50.08mm x 69.85mm x 25.5mm)
• Product weight (approx.): 0.1 lbs. (0.05 kg).
• Shipping weight (approx.): 0.15 lbs. (0.07 kg).

Features

• Input Voltage:
• Snap track mountable (order part # ST1).
• System AC input VA requirement:
• 6VDC: 1.8VA.
• Current draw: 30mA.
• Product weight (approx.): 0.1 lbs. (0.05 kg).
• 24VDC: 7.2VA.
• Operating temperature: – 25º C to 55º C ambient.
• 6VDC, 12VDC or 24VDC operation.
• Electrical:
• Mechanical:
• 12VDC: 3.6VA.
• Shipping weight (approx.): 0.15 lbs. (0.07 kg).
• Contact Rating: 1 amp/120VAC or 2 amp/28VDC DPDT contacts.
• Dimensions (W x L x H approx.): 2″ x 2.75″ x 1″ (50.08mm x 69.85mm x 25.5mm)

Attributes

Access Type: Access Control Module

Alternate Codes: 140062, RBST

Category: Access Control, Access Management, Hardwired

Function: Relay Module

Output Amps: 1/2 AMPS

Output Volts: 28VDC

Purpose: General

Series: Altronix Relay Modules

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: ACCESS CONTROL

Voltage: 12V DC, 24V DC, 6V DC
