Description

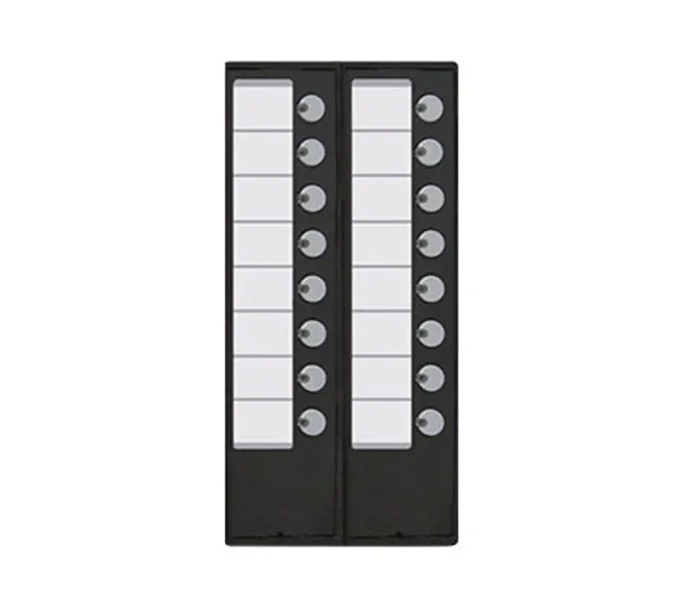

Aiphone AX-16SW Master Station Control Unit
Aiphone AX-16SW Master Station is an essential component for any comprehensive audio/video security system. This selector add-on accommodates up to 16 calls from door stations and works seamlessly with the AX Series, supporting a total of 120 door or interior stations while connecting up to 8 interior master stations. Designed for commercial use, it utilizes CAT-5e/6 wiring, ensuring reliable communication with two talk channels for enhanced clarity. Featuring a 3.5″ direct view TFT color LCD monitor, the AX-16SW allows users to see who is at the door while providing a programmable tremolo call tone that can be set for durations between 10 to 600 seconds, or even infinitely. The door release function can be tailored per station, operating on either N/O or N/C configurations with a maximum of 500mA.Installation is straightforward, with a wiring distance of up to 980 feet from the door station to the Central Equipment Unit (CEU). The master station operates on a 24V DC power source, requiring two PS-2420UL units for optimal performance. With its sleek black finish and robust functionality, the Aiphone AX-16SW Master Station is a reliable choice for enhancing security communications in any commercial setting.
Master Station
Selector Add-On, 16-Calls/Door Stations, For 8M/8MV, Black
The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.
Supports up to 8 interior master stations and 120 door or interior stations.
All components useCAT-5e wiring homerun from each station and has two talk channels.
- Power Source ;24V DC – Use two PS-2420UL (110V AC) per system
- Door Station Calling:Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
- Master Station Calling:Select station to call, pretone sounds, then speak hands-free or push-to-talk
- Video Monitor:3.5” direct view TFT color LCD
- Door Release:N/O or N/C, programmable per station 24V AC/DC (500mA max.)
- Wiring:CAT-5e UTP-4 homerun from each station to CEU
- Distance:Door station to CEU: 980’ Master station to CEU: 980’
- CO Tel Adaptor:Viking Model K-1900-5 Programmable Dialer
Attributes
Commercial Residential: Commercial
Communication: Telephone Entry
Door Panel Mount: Surface
Finish: Black
Finish Family: Black
Installation: Commercial
Limited Warranty: 1 Year Limited Warranty
Operating Voltage: 24 VDC
Pack Qty: 1
Product Height: 6.88″
Product Length: 1.88″
Product Width: 3.38″
Series: AX Integratable Audio/Video Security System
Station Mount: Rack
Station Size: 6-7/8″x3-3/8″x1-7/8″
Subtype: Master & Submaster Stations
Type: Intercoms
Unit of Measure: Each
Upc: 7.90143E+11
Wire Required: CAT5/5E/6
