Aiphone Audio Master Station – High-Quality Intercom System

Description

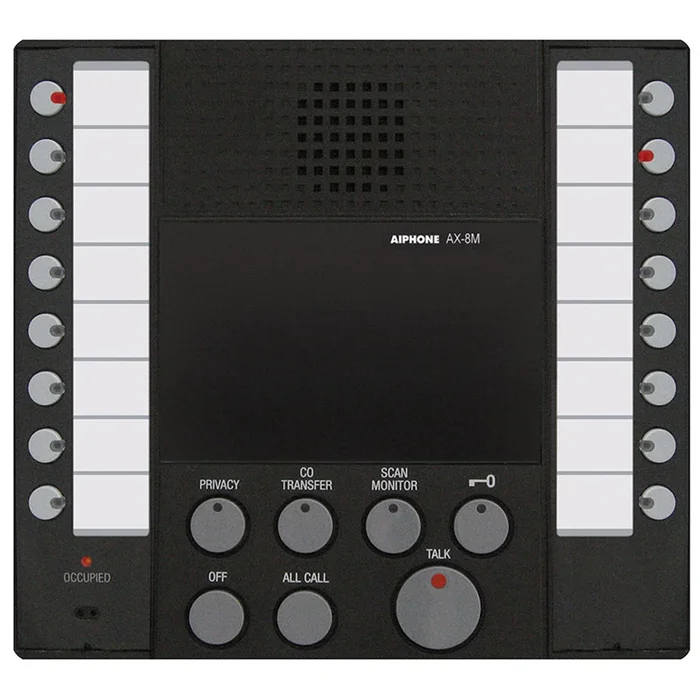

Aiphone AX-8M Audio Master Control Station

Aiphone AX-8M Audio Master Station offers a robust solution for your communication needs in commercial environments. Designed for wall or desk mounting, this audio master station seamlessly integrates with up to 8 interior master stations and 120 door or interior stations. Utilizing CAT-5e/6 cabling, all components are wired for easy installation and reliable performance. This model features two talk channels, enabling efficient communication throughout your facility. The door station calling system includes a programmable tremolo call tone adjustable from 10 to 600 seconds, or infinite, with an LCD monitor remaining on for up to 10 minutes. You can easily select a calling station, hear a pre-tone, and communicate hands-free or via push-to-talk functionality. The 3.5″ direct view TFT color LCD adds a visual component to your communication, enhancing security and convenience. With a programmable door release feature supporting 24V AC/DC, this master station ensures easy access management. It supports distances of up to 980 feet from door stations to the Central Equipment Unit (CEU) and includes a Viking Model K-1900-5 programmable dialer for added functionality. With a sleek black finish and a one-year limited warranty, the Aiphone AX-8M is a reliable choice for any professional setting.

Audio Master Station

Audio Master Station, Wall Or Desk Mount

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components useCAT-5e wiring homerun from each station and has two talk channels.

• Power Source ;24V DC – Use two PS-2420UL (110V AC) per system
• Door Station Calling:Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling:Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor:3.5” direct view TFT color LCD
• Door Release:N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring:CAT-5e UTP-4 homerun from each station to CEU
• Distance:Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor:Viking Model K-1900-5 Programmable Dialer

Attributes

Commercial Residential: Commercial

Communication: Telephone Entry

Door Panel Mount: Surface

Finish: Black

Finish Family: Black

Installation: Commercial

Limited Warranty: 1 Year Limited Warranty

Operating Voltage: 24 VDC

Pack Qty: 1

Product Height: 6.88″

Product Length: 2.56″

Product Width: 7.63″

Series: AX Integratable Audio/Video Security System

Station Mount: Surface Desk

Station Size: 6-7/8″x7-5/8″x2-9/16″

Subtype: Master & Submaster Stations

Type: Intercoms

Unit of Measure: Each

Upc: 7.90E+11

Wire Required: CAT5/5E/6
