Description

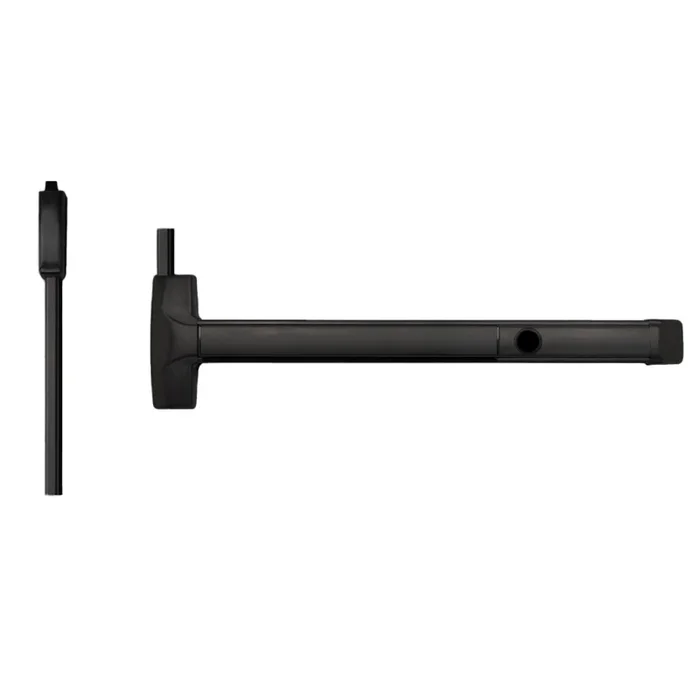

Detex H21-CD-693-48 Advantex Wind Rated Wide Stile SVR Exit Device, 48in, Black Powder Coated
Detex Corporation H21-CD-693-48 Advantex Wind Rated Wide Stile Surface Vertical Rod (SVR) is a heavy-duty exit device designed for reliable performance on double doors without a mullion. This exit-only device features a top rod only design, making it an excellent choice for high-traffic environments where security and quick egress are paramount. Crafted for durability, the H21 Series boasts a tough construction that ensures years of trouble-free service. The cylinder dogging mechanism allows for easy operation, while the stainless steel rod covers enhance security. The patented mounting plate and strike locator system not only simplify installation but also eliminate the need for paper templates. With a 48-inch width, the H21 is designed to fit standard door sizes, accommodating doors from 1-3/4″ to 2-1/4″ thick. It features a stainless steel deadlocking top latch and is field reversible, adding to its versatility. The device is finished in a sleek black powder coat, providing both an aesthetic appeal and additional protection against wear. Certified to A156.3, ADA, ANSI, BHMA, and UL standards, the Detex H21-CD-693-48 Advantex is engineered to meet the demands of any setting, combining safety, functionality, and ease of use in one comprehensive package.
Advantex Wind Rated Wide Stile Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Only Device, No Trim, Cylinder Dogging, 48in, 693/SPBLK Black Powder Coated
Notice: The info below is not item specific.
The H21 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 21 Series Top Rod Only exit devices are supplied with rod cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Outside trims are easily changed or rekeyed without removing device from door
- Minimal door prep saves time and money
- Heavy duty angled end cap deflects damage away from device
- Security enhanced by stainless steel rod covers, standard
- Patented mounting plate and strike locator system replaces paper templates
- Fast and easy installation saves time and money
Features:
- Stainless steel deadlocking top latch
- 1/8 turn hex or cylinder dogging
- All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process.
- Handed – field reversible
- Field sizeable
Mechanical Options:
- F – 3-Hour Fire Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- 84 – 84″ Door Height (Std.)
- 96 – 85″ to 96″ Door Height
- 120 – 97″ to 120″ Door Height
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB4 – Glass Bead Kit – 7′ Door Height (84″)
- GB8 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
- GB12 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
- SN1 – Sex Nut Kit (2 per package)
- SSK- Security Torx Screw Kit
- Trim Functions
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 4-1/2″ with standard 97 strike
- Fasteners – Machine and Self-Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: H21-CD-693-48, H21CD69348
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed
Device Width: 48″
Dogging: CD – Cylinder Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Exit Device Options: Ramped Endcap
Finish Code: 693
Finish Color: Black, Black Powder Coat, Sprayed Black
Function: Exit Only
Grade: Grade 1
Manufacturer: Detex Corporation
Options: Less Bottom Rod
Series: Advantex 21 Series
Strike Type: Surface Strike
Trim Option: Less Trim
Weather Rating: Hurricane Device
Weatherproof: No
