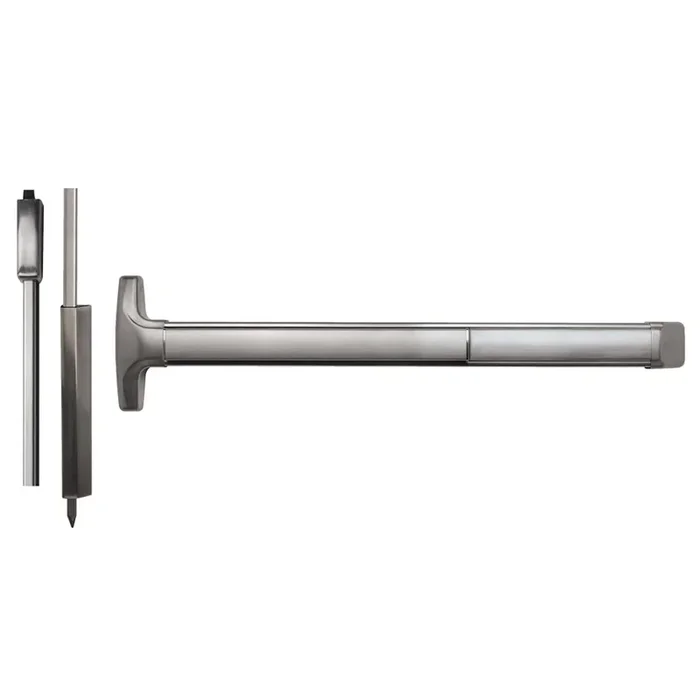

Advantex Wind Rated Narrow Stile Surface Vertical Rod Exit Device – 48in Satin Stainless Steel

Description

Detex H50-LD-630-48 Advantex Wind Rated Narrow Stile SVR Exit Device, 48in, Satin Stainless Steel

Detex Corporation H50-LD-630-48 Advantex Wind Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device is engineered for high-demand environments, providing a robust solution for narrow stile double doors without a mullion. Designed with super-heavy-duty panic and fire exit hardware, this device is ideal for locations that experience frequent use and adverse weather conditions. Featuring durable stainless steel construction, the H50 series ensures long-lasting performance with minimal maintenance. The device is equipped with a deadlocking top latch and a hardened steel bottom drop bolt that includes a dust-proof strike. Its patented mounting plate and strike locator system streamline installation, making it quick and straightforward.The exit device is also ADA compliant, incorporating a ramped bottom bolt cover for added accessibility. With the capability for easy rekeying or changing of outside trims without removing the device from the door, it offers exceptional convenience.The H50-LD-630-48 model comes finished in brushed stainless steel (630/US32D) and is designed to fit 48-inch wide doors. It adheres to multiple certifications, including A156.3 and ANSI, ensuring compliance with industry standards. For reliable security, durability, and ease of installation, the Detex H50-LD-630-48 is an excellent choice for professionals and knowledgeable homeowners alike.

Advantex Wind Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device, No Trim, Less Dogging, 48in, 630/US32D Satin Stainless Steel

Notice: The info below is not item specific.

The H50 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
• Outside trims are easily changed or rekeyed without removing device from door
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Security enhanced by stainless steel rod covers, standard
• Patented mounting plate and strike locator replaces paper templates

Features:

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with dust proof strike
• ADA ramped bottom bolt cover
• 1/8 turn hex or cylinder dogging
• Handed – field reversible
• Field sizeable
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options:

• F – 3-Hour Fire Rated
• AM – Anti-Microbial Coating
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• EC1 – Heavy duty angled end cap (Std.)
• EC2 – Flush end cap
• 84 – 84″ Door Height (Std.)
• 96 – 85″ to 96″ Door Height
• 120 – 97″ to 120″ Door Height

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB5 – Glass Bead Kit – 7′ Door Height (84″)
• GB9 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
• GB13 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
• SN1 – Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit
• Trim Functions

Technical Information:

• Minimum Stile – 2″ with standard 96 strike
• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Fasteners – Machine and Self-Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black Painted
• 695/SP313 – Dark Bronze Painted

Attributes

Alternate Codes: H50-LD-630-48, H50LD63048

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 48″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Narrow Stile Surface Vertical Rod Exit

Exit Device Options: Ramped Endcap

Finish Code: 630

Finish Color: Satin Stainless Steel

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Advantex 50 Series

Strike Type: Dust Proof Bottom Strike (50 Series Only), Surface Strike

Weather Rating: Hurricane Device

Weatherproof: No
