Advantex Wind Rated Narrow Stile Surface Vertical Rod Exit Device – 36in Dark Bronze

Description

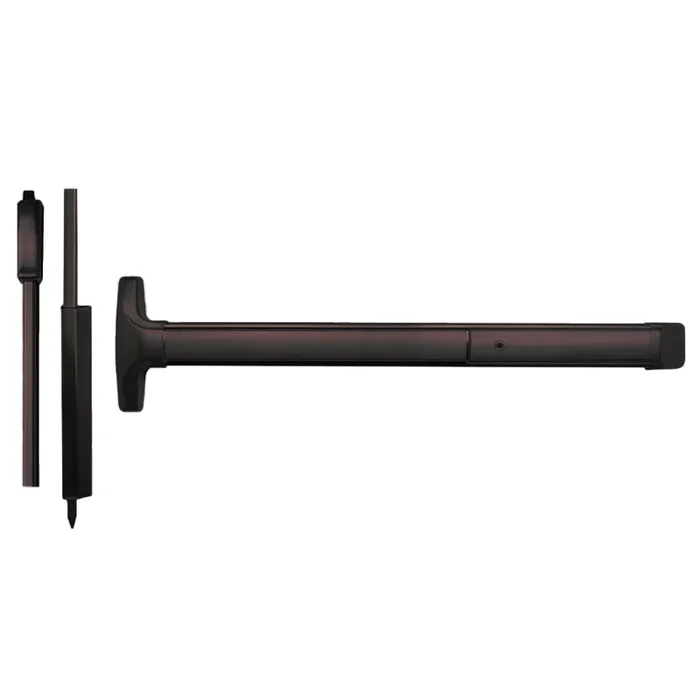

Detex H50-695-36 Advantex Wind Rated Narrow Stile SVR Exit Device, No Trim, 36in, Dark Bronze

Detex Corporation H50-695-36 Advantex Wind Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device offers robust security and compliance for narrow stile double doors without a mullion. Engineered for high-traffic environments, this super-heavy-duty panic and fire exit hardware excels in durability and functionality. The device features a patented mounting plate and strike locator system that simplifies installation, eliminating the need for cumbersome paper templates. This exit device includes stainless steel deadlocking top latches and a hardened steel bottom drop bolt with a dust-proof strike, ensuring reliable operation under various conditions. The heavy-duty angled end cap protects against damage, while the ADA-compliant ramped bottom bolt cover enhances accessibility. Additionally, the outside trims can be easily changed or rekeyed without removing the device from the door, streamlining maintenance. The H50-695-36 is designed to fit standard door widths of 36 inches, and its field-reversible handing allows for versatile installation options. With a sleek dark bronze finish, it complements any architectural style. Certified to meet A156.3, ADA, ANSI, BHMA, and UL standards, this exit device not only enhances security but also stands up to the demands of inclement weather, making it an ideal choice for professionals and knowledgeable homeowners alike.

Advantex Wind Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device, No Trim, Hex Dogging, 36in, 695/SP313 Dark Bronze Painted

Notice: The info below is not item specific.

The H50 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
• Outside trims are easily changed or rekeyed without removing device from door
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Security enhanced by stainless steel rod covers, standard
• Patented mounting plate and strike locator replaces paper templates

Features:

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with dust proof strike
• ADA ramped bottom bolt cover
• 1/8 turn hex or cylinder dogging
• Handed – field reversible
• Field sizeable
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options:

• F – 3-Hour Fire Rated
• AM – Anti-Microbial Coating
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• EC1 – Heavy duty angled end cap (Std.)
• EC2 – Flush end cap
• 84 – 84″ Door Height (Std.)
• 96 – 85″ to 96″ Door Height
• 120 – 97″ to 120″ Door Height

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB5 – Glass Bead Kit – 7′ Door Height (84″)
• GB9 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
• GB13 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
• SN1 – Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit
• Trim Functions

Technical Information:

• Minimum Stile – 2″ with standard 96 strike
• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Fasteners – Machine and Self-Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black Painted
• 695/SP313 – Dark Bronze Painted

Attributes

Alternate Codes: H50-695-36, H5069536

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 36″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Narrow Stile Surface Vertical Rod Exit

Exit Device Options: Ramped Endcap

Finish Code: 695

Finish Color: Dark Bronze, Sprayed Duranotic

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Advantex 50 Series

Strike Type: Dust Proof Bottom Strike (50 Series Only), Surface Strike

Weather Rating: Hurricane Device

Weatherproof: No
