Advantex Wide Stile Rim Exit Only Device – Detex Corporation

Description

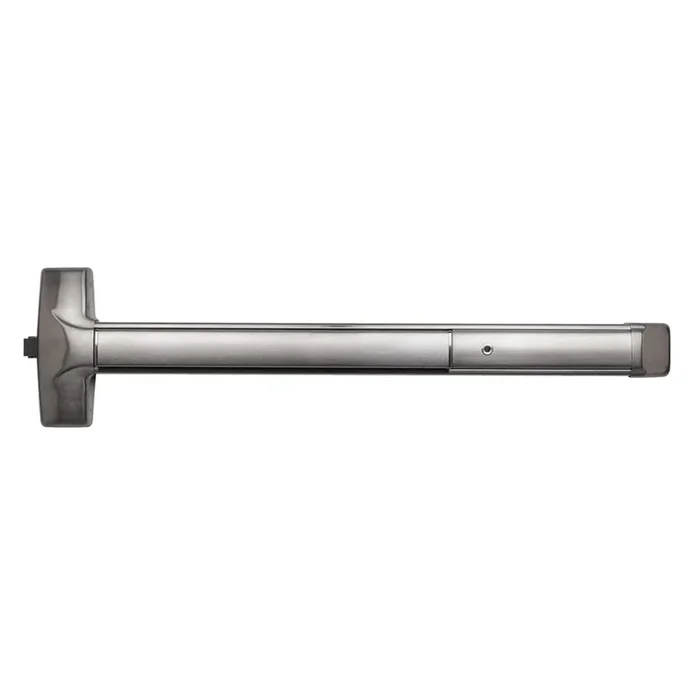

Detex 10-630-36 Advantex Wide Stile Rim Exit Device, No Trim, Satin Stainless Steel

Detex Corporation 10-630-36 Advantex Wide Stile Rim Exit Only Device delivers robust security and ease of use for high-traffic environments. Designed for single and double doors, this super-heavy-duty panic and fire exit hardware boasts a patented mounting plate and strike locator system that simplifies installation, eliminating the need for complicated paper templates.Engineered for durability, the 10 Series device is tested beyond 1,000,000 cycles, ensuring longevity and reliability in demanding conditions. The stainless steel construction features a brushed finish (630/US32D) that not only enhances its aesthetic appeal but also resists wear and tear. With minimal door preparation required, installation is both quick and cost-effective. The device includes a stainless steel deadlocking Pullman-type latch bolt and offers various mechanical options, including fire and hurricane ratings. It is non-handed and field sizeable, accommodating standard door widths of 36 inches, while the heavy-duty angled end cap deflects damage, prolonging the device’s life. The 10-630-36 is compliant with multiple industry standards, including ANSI and UL, ensuring peace of mind for building professionals and homeowners alike. Trust Detex Corporation for a reliable exit solution that prioritizes safety and efficiency.

Advantex Wide Stile Rim Exit Only Device, No Trim, 630/US32D Satin Stainless Steel

Notice: The info below is not item specific.

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F – 3-Hour Fire Rated
• H – Hurricane Rated
• AM – Anti-Microbial Coating
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• SLR – Silencer
• 99 – Surface Strike (Std.)
• 98 – Semi Mortise Strike
• EC1 – Heavy duty angled end cap (Std.)
• EC2 – Flush end cap
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 – Glass Bead Kit
• SN1 – Sex Nut Kit (2 per package)
• SSK – Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Minimum Stile – 4-5/8″ with standard 99 strike; 4-1/8″ with optional 98 strike
• Fasteners – Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black, Painted
• 695/SP313 – Dark Bronze, Painted

Attributes

Alternate Codes: 10-630-36, 1063036, 141201

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 36″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Exit Device Options: Ramped Endcap

Finish Code: 630

Finish Color: Satin Stainless Steel

Function: Exit Only

Grade: Grade 1

Manufacturer: Detex Corporation

Series: Advantex 10 Series

Strike Type: Surface Non-Roller Strike

Trim Option: Less Trim

Weatherproof: No

Resources

• Cut Sheet
