Advantex Wide Stile Rim Exit Only Device – 36in, Dark Bronze Painted

Description

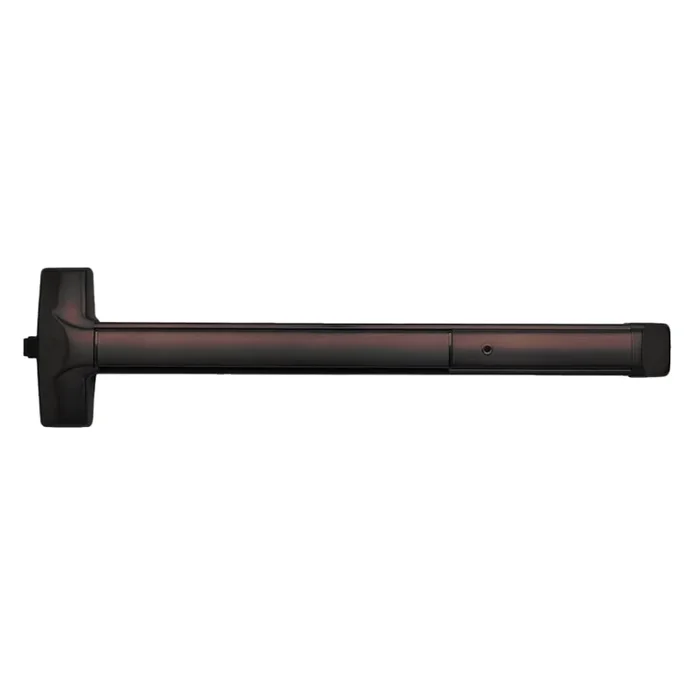

Detex 10-LD-695-36 Advantex Wide Stile Rim Exit Device, No Trim, 36in, Dark Bronze

Detex Corporation 10-LD-695-36 Advantex Wide Stile Rim Exit Only Device offers super-heavy-duty panic and fire exit hardware designed for both single and double doors, including those with mullions. This exceptional device features a patented mounting plate and strike locator system that simplifies installation, ensuring accuracy and saving valuable time and resources. Constructed for durability, the 10 Series is ideal for high-use, high-abuse environments, promising years of reliable service. The design minimizes door preparation, allowing for swift installation, while the heavy-duty angled end cap effectively deflects damage away from the device. With a stainless steel deadlocking, Pullman-type latch bolt, this exit device has been rigorously tested beyond 1,000,000 cycles, exceeding the requirements for Grade 1 UL testing. The Detex 10-LD-695-36 is non-handed and field sizeable, fitting standard 1-3/4″ to 2-1/4″ door thicknesses. Its dark bronze painted finish not only enhances aesthetics but also provides long-lasting protection. The device is compatible with various door types, including wood, hollow metal, fiberglass, and aluminum, making it a versatile choice for any security need. With certifications such as A156.3, ADA, and UL Listed, this exit device is a reliable solution for ensuring safety and compliance in any building.

Advantex Wide Stile Rim Exit Only Device, No Trim, Less Dogging, 36in, 695/SP313 Dark Bronze Painted

Notice: The info below is not item specific.

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F – 3-Hour Fire Rated
• H – Hurricane Rated
• AM – Anti-Microbial Coating
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• SLR – Silencer
• 99 – Surface Strike (Std.)
• 98 – Semi Mortise Strike
• EC1 – Heavy duty angled end cap (Std.)
• EC2 – Flush end cap
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 – Glass Bead Kit
• SN1 – Sex Nut Kit (2 per package)
• SSK – Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Minimum Stile – 4-5/8″ with standard 99 strike; 4-1/8″ with optional 98 strike
• Fasteners – Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black, Painted
• 695/SP313 – Dark Bronze, Painted

Attributes

Alternate Codes: 10-LD-695-36, 10LD69536

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 36″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Exit Device Options: Ramped Endcap

Finish Code: 695

Finish Color: Dark Bronze, Sprayed Duranotic

Function: Exit Only

Grade: Grade 1

Manufacturer: Detex Corporation

Series: Advantex 10 Series

Strike Type: Surface Non-Roller Strike

Trim Option: Less Trim

Weatherproof: No
