Description

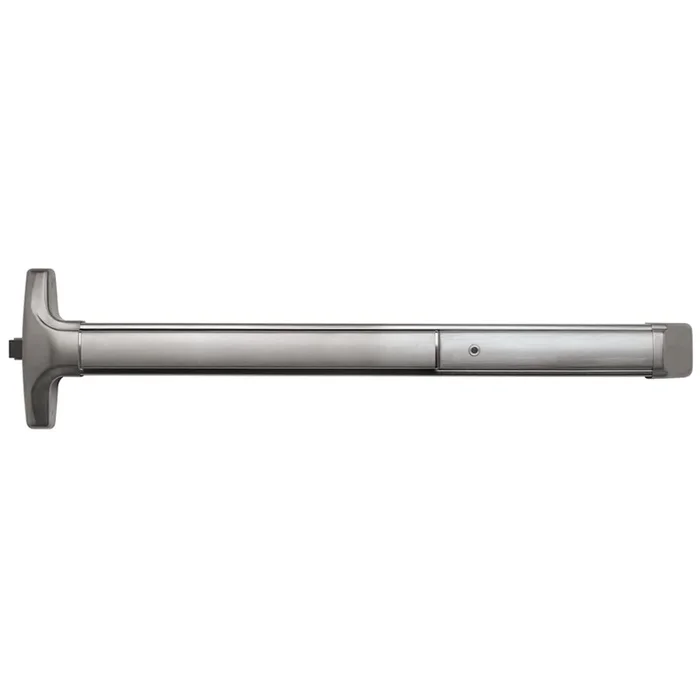

Detex 40-630-48 Advantex Narrow Stile Rim Device, Hex Dogging, 48in, Satin Stainless Steel

Detex Corporation 40-630-48 Advantex Narrow Stile Rim Device is engineered for exceptional durability and reliability in high-use environments. This super-heavy-duty panic and fire exit hardware is ideal for narrow stile single and double doors, featuring a patented mounting plate and strike locator system that simplifies installation and enhances accuracy. Constructed from satin stainless steel, the 40-630-48 is designed to withstand years of wear and tear. Its robust features include a stainless steel deadlocking Pullman-type latch bolt and hex dogging for secure locking. The minimal door preparation required not only saves time but also cuts down on installation costs, making it an economical choice for professionals. This device is non-handed and fits standard door widths of 48 inches, accommodating various door types, including wood, hollow metal, fiberglass, or aluminum. The heavy-duty angled end cap effectively deflects damage away from the device, ensuring longevity. Additionally, outside trims can be easily changed or rekeyed without removing the device from the door. Certified to meet A156.3, ADA, ANSI, and UL standards, the Detex 40-630-48 is a reliable option for ensuring safety and security in commercial settings. Upgrade your exit hardware with this high-performance solution that combines functionality with ease of use.

Advantex Narrow Stile Rim Device, No Trim, Hex Dogging, 48in, 630/US32D Satin Stainless Steel

Notice: The info below is not item specific.

The 40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking, Pullman-type latch bolt
• Non-handed
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• 1/8 turn dogging
• Field sizeable

Mechanical Options:

• F – 3-Hour Fire Rated
• H – Hurricane Rated
• AM – Anti-Microbial Coating
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 98 – Semi Mortise Strike (Std.)
• 99 – Surface Strike
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• EC1 – Heavy duty angled end cap (Std.)
• EC2 – Flush end cap

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Integration (EI)
• Electric Latch Retraction (ER)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU2W)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB2 – Glass Bead Kit
• SN1 – Sex Nut Kit (2 per package)
• SSK – Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Minimum Stile – 4-3/4″
• Machine and Self-Drilling Screws (Std.)
• Optional Sex Nuts for wood or composite doors
• Security Torx screws available

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black Painted
• 695/SP313 – Dark Bronze Painted

Attributes

Alternate Codes: 40-630-48, 4063048

Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Narrow Stile Rim Exit

Exit Device Options: Ramped Endcap

Finish Code: 630

Finish Color: Satin Stainless Steel

Function: Exit Only

Grade: Grade 1

Manufacturer: Detex Corporation

Series: Advantex 40 Series

Strike Type: Semi-Mortise Strike

Weatherproof: No
