Advantex High Security Surface Vertical Rod (SVR) Exit Only Device – Detex Corporation

Description

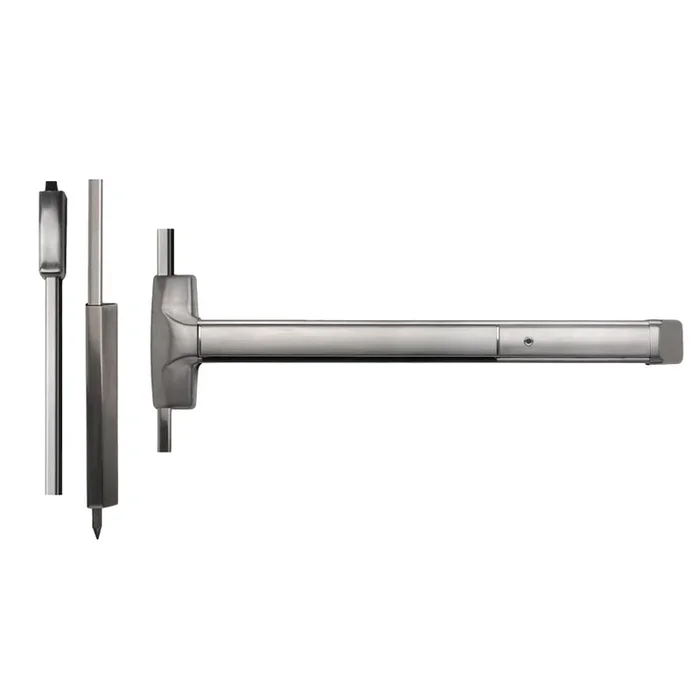

Detex 27-630-48 Advantex High Security SVR Exit Device, No Trim, Hex Dogging, 48in, Satin SS

Detex Corporation 27-630-48 Advantex High Security Surface Vertical Rod (SVR) Exit Only Device offers robust and reliable panic exit hardware designed for double doors without a mullion. Crafted from durable materials, this super-heavy-duty device is ideal for high-use and high-abuse environments, ensuring years of trouble-free service. It features oversized, heavy-duty relatching top and bottom bolts for enhanced security. The patented mounting plate and strike locator system simplifies installation, eliminating the need for cumbersome paper templates. With minimal door preparation required, this device not only saves time but also reduces costs. The outside trims can be easily changed or rekeyed without removing the device from the door, adding to its convenience. Equipped with a stainless steel deadlocking top latch and a hardened steel bottom drop bolt, the 27-630-48 is built to last. Its field-reversible design allows for easy adjustments to fit varying door configurations. The heavy-duty angled end cap deflects damage away from the device, enhancing its longevity.Finished in a sleek satin stainless steel, this exit device meets rigorous standards, including A156.3, ADA, ANSI, and UL listings, making it a top choice for professionals seeking reliable security solutions.

Advantex High Security Surface Vertical Rod (SVR) Exit Only Device, No Trim, Hex Dogging, 48in, 630/US32D Satin Stainless Steel

Notice: The info below is not item specific.

The 27 Series high security surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The 27 Series is available with both top and bottom rods, but not available with top rod only. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
• Security enhanced by oversized, heavy duty relatching top and bottom bolts
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money
• Heavy duty angled end cap deflects damage away from device

Features:

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with optional dust proof strike
• Handed – field reversible
• Field sizeable
• Bottom bolt cover
• 1/8 turn hex or cylinder dogging
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options:

• T – Tornado/Windstorm Rated (FEMA 361) – up to 42″ wide and 88″ height
• F – 3-Hour Fire Rated
• AM – Anti-Microbial Coating
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• 84 – 84″ Door Height (Std.)
• 96 – 85″ to 96″ Door Height
• 120 – 97″ to 120″ Door Height

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB3 – Glass Bead Kit – 7′ Door Height (84″)
• GB7 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
• GB11 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
• SN1 – Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit
• Trim Functions

Technical Information:

• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Minimum Stile – 4-1/2″ with standard 97 strike
• 1-1/2″ minimum frame stop width
• Fasteners – Machine and Self-Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black Painted
• 695/SP313 – Dark Bronze Painted

Attributes

Alternate Codes: 27-630-48, 2763048

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Surface Vertical Rod Exit SVR

Exit Device Options: Ramped Endcap

Finish Code: 630

Finish Color: Satin Stainless Steel

Function: Exit Only

Grade: Grade 1

Manufacturer: Detex Corporation

Series: Advantex 27 Series

Strike Type: Surface Strike

Trim Option: Less Trim

Weatherproof: No
