Advantex Fire Rated Wide Stile SVR Exit Only Device – Detex Corporation

Description

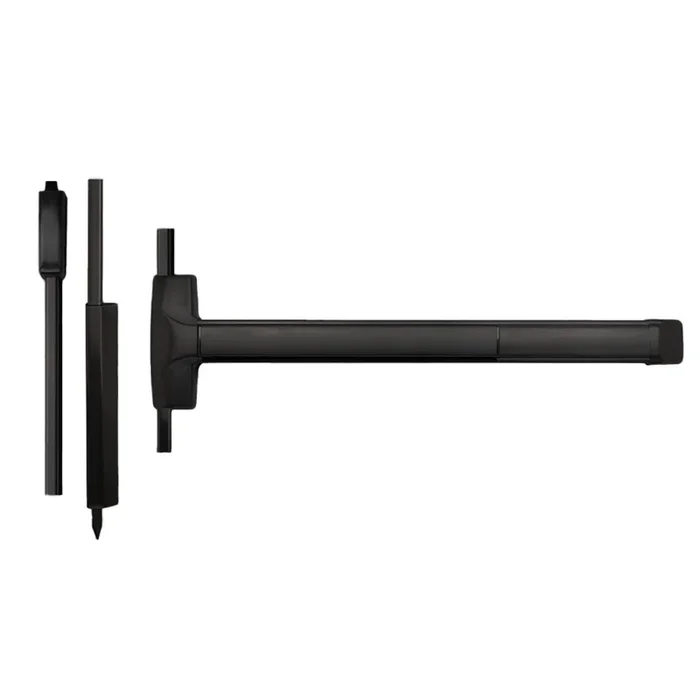

Detex F20-LD-693-36 Advantex Fire Rated Wide Stile SVR Exit Device, 36in, Black Powder Coated

Detex Corporation F20-LD-693-36 Advantex Fire Rated Wide Stile Surface Vertical Rod (SVR) Exit Only Device is engineered for maximum durability and security on double doors without a mullion. This super-heavy-duty panic and fire exit hardware is designed for high-use environments, providing reliable functionality when it matters most. The device features stainless steel deadlocking top latches and a hardened steel bottom drop bolt with a dust-proof strike, ensuring robust protection. With a patented mounting plate and strike locator system, installation is simplified, reducing time and labor costs. The F20 series is designed with minimal door prep in mind, allowing for quick and efficient setup. The device is also field sizeable and handed, making it versatile for various applications. The black powder-coated finish not only enhances its aesthetic appeal but also adds a layer of protection against wear. The ADA-compliant ramped bottom bolt cover ensures accessibility for all users. This exit device is UL listed and fire-rated for up to 3 hours, meeting stringent safety standards. Whether for commercial or residential applications, the Detex F20-LD-693-36 is a dependable choice that combines strength, functionality, and ease of installation, ensuring peace of mind in emergency situations.

Advantex Fire Rated Wide Stile Surface Vertical Rod (SVR) Exit Only Device, No Trim, Less Dogging, 36in, 693/SPBLK Black Powder Coated

Notice: The info below is not item specific.

The F20 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 20 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door
• Security enhanced by stainless steel rod covers, standard
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money

Features:

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with dust proof strike
• Field sizeable
• ADA ramped bottom bolt cover
• 1/8 turn hex or cylinder dogging
• Handed – field reversible
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options:

• F – 3-Hour Fire Rated
• AM – Anti-Microbial Coating
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 24 – Fits 24″ Door Width
• 30 – Fits 30″ Door Width
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• 84 – 84″ Door Height (Std.)
• 96 – 85″ to 96″ Door Height
• 120 – 97″ to 120″ Door Height

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress – Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB3 – Glass Bead Kit – 7′ Door Height (84″)
• GB7 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
• GB11 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
• SN1 – Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit

Technical Information:

• Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
• Minimum Stile – 4-1/2″ with standard 97 strike
• Fasteners – Machine and Self-Drilling Screws standard

Finishes:

• 605/US3 – Polished Brass
• 606/US4 – Brushed Brass
• 611/US9 – Polished Bronze
• 612/US10 – Brushed Bronze
• 613/US10B – Oil Rubbed Bronze
• 628/US28 – Aluminum Satin
• 629/US32 – Polished Stainless Steel
• 630/US32D – Brushed Stainless Steel
• 693/SPBLK – Black Painted
• 695/SP313 – Dark Bronze Painted

Attributes

Alternate Codes: F20-LD-693-36, F20LD69336

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour

Device Width: 36″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Surface Vertical Rod Exit SVR

Exit Device Options: Ramped Endcap

Finish Code: 693

Finish Color: Black, Black Powder Coat, Sprayed Black

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Manufacturer: Detex Corporation

Series: Advantex 20 Series

Strike Type: Surface Strike

Trim Option: Less Trim

Weatherproof: No
