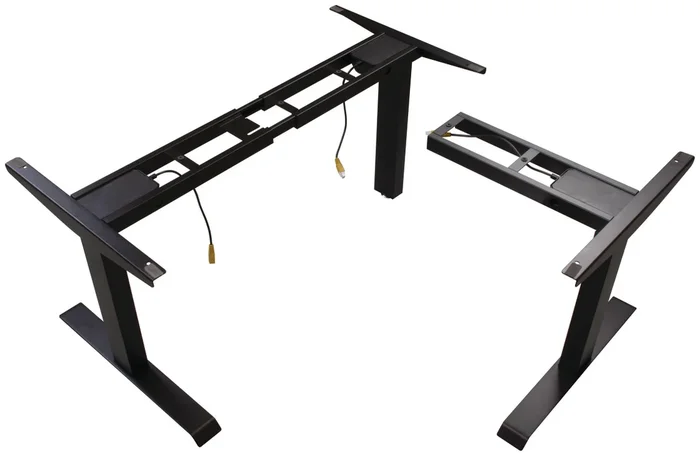

Adjustable Table 3-Leg System, STAR by Hafele

Description

Hafele 637.45.296 STAR Adjustable 3-Leg Table System

Hafele 637.45.296 Adjustable Table 3-Leg System, STAR offers a robust and flexible solution for corner table workstations. Crafted from durable steel and finished in sleek black, this table system supports a weight rating of 335 lbs, including the tabletop weight. Its height adjustment range from 21 ¾” to 47 ¼” (excluding top thickness) accommodates diverse user preferences, making it ideal for a variety of applications. Designed with safety in mind, the STAR system features an integrated Collision Protection System. The AMP Draw functionality detects sudden increases in current draw, prompting the table to reverse direction to prevent damage. Complementing this is a Gyro Sensor that monitors abrupt changes in speed, angle, or impact to the worksurface. With a smooth travel speed of 40 mm/sec and a stroke length of 25 ½”, the system ensures efficient adjustments. Supplied with three adjustable columns, support beams, top support plates, and a programmable switch, this table system is versatile and user-friendly. The adjustable width support beam ranges from 42 ½” to 71″, while the floating third leg fixed beam is set at 19 ¾”. Compliant with BIFMA X5.5 standards and UL 962 recognized, the Hafele STAR table system is a reliable choice for any modern workspace.

Adjustable Table 3-Leg System, STAR

black

Made in the USA. Weight rating: 335 lbs including top weight
STAR tables are safe, with an integrated Collision Protection System: 1). AMP Draw – If the control box detects that any of the legs receive a spike in amp-draw due to for example, something hitting the table, the table will reverse direction to avoid damage. 2). Gyro Sensor – This internal sensor will detect the following: • Sudden change in speed (up or down) • Sudden change in the angle of the desk (up or down) • An impact to the worksurface (up or down) Stroke: 25 1/2″ Meets BIFMA X5.5 standards UL 962 Recognized

Weight rating is based on an evenly distributed load over tabletop. Please provide at least 1″ space between tabletop and any adjoining surfaces, cabinets, etc.

Attributes

Area of application: Designed for corner table workstations. Recommended for: Top widths: 36″ – 84″ Top depths: 24″ – 30″

Color/finish: Black

Height adjustment: 21 3/4″ – 47 1/4″, not including top thickness

Load bearing capacity: 335 lbs. including top weight

Material: Steel

Supplied with: 3 Adjustable columns Support beams 3 Top Supports plates 2 Feet Programmable switch Control box, wiring and assembly hardware

Travel: 40 mm /sec

Version: With 3-stage adjustable columns With 4-setting programmable switch With adjustable width support beam, adjustment range 42 ½” – 71″ and a floating 3rd leg fixed beam at 19 ¾”

Resources

• Installation instructions
• STAR 3-Leg System Mounting Instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 6.59A
• Technical data sheet
• Troubleshooting Guide for 3+ Column Star Bases
