Adams Rite 8430-37342 Mortise Exit Device Instructions

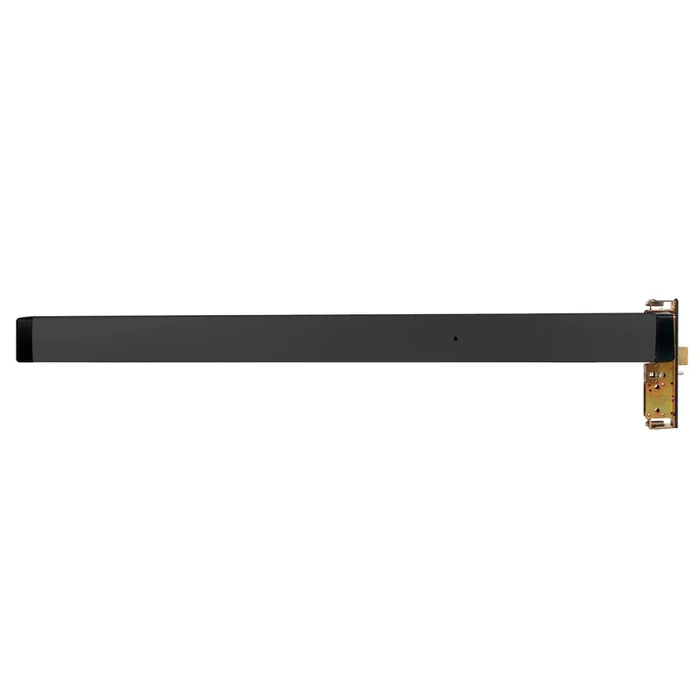

Adams Rite 8430-37342 Mortise Exit Device is designed for life safety in narrow stile aluminum applications, making it an ideal choice for commercial environments. With a length of 42 inches and a right-hand reverse (RHR) configuration, this exit device combines functionality with a clean, unobtrusive aesthetic. Constructed from extruded aluminum, the pushbar is available in a black anodized finish, ensuring durability and style. Its patented “Starwheel” bolt mechanism interlocks the door to the frame, enhancing security while allowing for smooth operation. The deadlocking slide secures the starwheel bolt to the strike, only releasing when the pushbar is depressed, ensuring reliable access when needed. The device is non-handed, allowing easy installation regardless of door orientation, and the lever entry trim can be field-reversed. It accommodates door heights up to 8 feet and fits standard door thickness of 1-3/4 inches, up to 2-1/4 inches. Additionally, the standard model’s bar height adjusts from 30 to 44 inches, making it versatile for various applications. With a five-year limited warranty, the Adams Rite 8430-37342 Mortise Exit Device is a dependable solution for enhancing safety and accessibility in your building.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 42 In., RHR, Black Anodized Aluminum

Mortise Exit Device, 1-1/8″ BacksetNarrow Stile Aluminum Doors, RHR, 42″, Black

Clean, unobtrusive design. Easy to install.

Patented “Starwheel” bolt interlocks door to frame, which is a unique feature for exit devices. The “Starwheel” bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials:Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing:Device is non-handed. Lever Entry Trim is field reversible.
• PushbarLength: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height:Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness:Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width:3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners:Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders(available separately): SeeCYLINDERSfor cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull:(ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim(ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty:Five year limited.

Attributes

Commercial Residential: Commercial

Device Length: 42″

Device Type: Mortise

Door Thickness: 1-3/4 In.

Finish: 315/335

Fire Rated: No

Handing: RHR

Includes Trim: No

Installation: Commercial

Mechanical Function: Universal

Minimum Stile Size: 2 In.

Pack Qty: 1

Pbs Options: 10371979,157406933

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: 8000 Series Exit Devices

Subtype: Mortise Exit Devices

Type: Exit Devices

Unit of Measure: Each
