Description

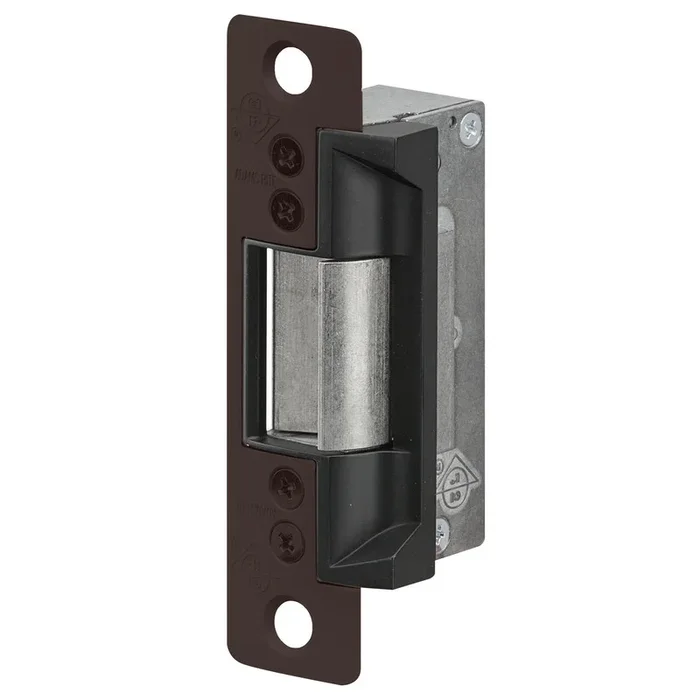

Adams Rite 7101-315-313-00 12V DC Electric Strike
Adams Rite 7101-315-313-00 Electric Strike 12DVC is a Grade 1 electric strike designed for fail-safe operation, making it an ideal choice for securing commercial doors. With a robust 12 VDC power supply, this electric strike is specifically tailored for aluminum applications, featuring a 4-7/8″ x 1-1/4″ radius faceplate with round corners finished in dark bronze anodization. This electric strike allows for remote electrical control of doors equipped with Adams Rite 4500 or 4900 deadlatches or cylindrical locksets, with latchbolt projections ranging from 1/2″ to 5/8″. The electrical actuation unlocks the keeper, enabling the latchbolt to release without manual operation, which enhances accessibility and convenience. Engineered for a variety of door materials, including aluminum, hollow metal, and wood, the Adams Rite 7101 offers a holding force of 1500 lbs static and 70 ft lbs dynamic, ensuring reliability under pressure. Its compact case measures approximately 1″ x 3-3/8″ x 1-5/8″ deep, and it is UL 1034 and UL 294 listed for added safety assurance. With a limited 5-year warranty, the Adams Rite 7101-315-313-00 Electric Strike is a strong contender for your security needs.
Electric Strike 12DVC
Grade 1 Electric Strike, Fail Safe, 12 VDC, for Aluminum Applications, 4-7/8″ x 1-1/4″ Radius Faceplate with Round Corners, Dark Bronze Anodized Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2″ [12.7 mm] To 5/8″[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2″ to 5/8″ latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2″ [12.7 mm] to 5/8″ [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
- Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
- Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
- Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
Attributes
Amp Draw: .33 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Radius Face, Round Corners
Faceplate Size: 4-7/8″ x 1-1/4″
Finish: 313
Finish Family: Dark Bronze
Function: Fail Safe
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Pack Qty: 1
Pbs Options: 103,963,901,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
Resources
- 7100 EL-Strike Field Conversion Installation Instructions
- 7100 Electric Strike for Aluminum Jamb w/4500/4700/4900 Deadlaches Installation Instructions
- 7100 Electric Strike for Aluminum Jamb w/Key-In-Knob Latches Installation Instructions
- 7100 Series Data Sheet Wire Coding Field Reversible Installation Instructions
- 7101 Electric Strike for Aluminum Stile w/4500/4700/49001 Deadlatches Installation Instructions
- 7108 Electric Strike for Aluminum Jamb w/8400 Mortise Exit Installation Instructions
- 7110 Electric Strike for Aluminum Jamb w/4500/4700 Deadlatches Installation Instructions
- 7110 Electric Strike for Wood Jamb w/4500/4700/4900 Deadlatches Installation Instructions
- 7111 Electric Strike for Wood Jamb w/4500/4700/4900 Deadlatches Installation Instructions
- 7128 Electric Strike for Metal Jamb w/8300 Mortise Exit Installation Instructions
- 7130 Electric Strike for Aluminum Jamb w/4500/4700 Deadlatches Installation Instructions
- 7131 Electric Strike for Aluminum Stile w/4500/4700 Deadlatches Installation Instructions
- 7140 Electric Strike for Metal Jamb w/4500/4700 Deadlatches Installation Instructions
- 7140 Electric Strike for Metal Jamb w/Key-In-Knob Latches Installation Instructions
- 7140 Electric Strike for Wood Jamb w/Key In Knob Latches Installation Instructions
- 7160 Electric Strike for Aluminum Jamb w/Mortise Latches Installation Instructions
- 7170 Electric Strike for Metal Jamb w/Mortise Latches Installation Instructions
- 7170 Electric Strike for Wood Jamb w/Mortise Latches Installation Instructions
- 71R1 Electric Strike for Metal Jamb Installation Instructions
- 71R2 Electric Strike for Metal Jamb Installation Instructions
- 7240 Fire-Rated Electric Strike for Metal Jamb w/Key-In-Knob Latches Installation Instructions
- 7400 Electric Strikes Cut Sheet
- Electric Strike Catalog
