Description

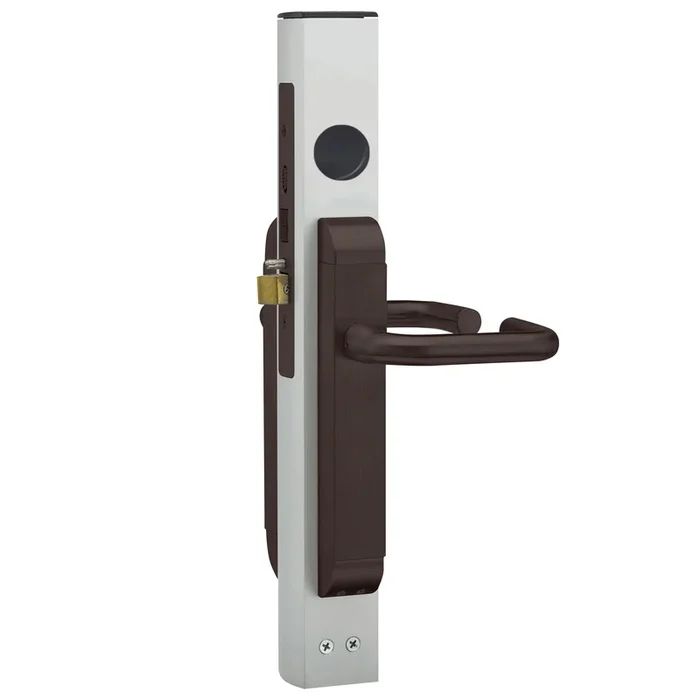

Adams Rite 2190-422-102-10B Dual Force 2190 Interconnected System
Adams Rite 2190-422-102-10B Dual Force 2190 Interconnected Lock delivers exceptional security and access control for aluminum stile doors. Designed with a 1-1/2″ backset and a radius strike, this lock features a dark bronze faceplate and a round lever trim in oil-rubbed bronze, blending functionality with aesthetic appeal. The Dual Force 2190 offers unique interconnected capabilities, combining a deadbolt and deadlatch for quick, panic-proof exits. With the exterior lever retracting only the latch and the interior lever retracting both the latch and deadbolt simultaneously, it ensures rapid egress during emergencies. This lock is specifically intended for out-swinging doors, providing added convenience and safety. Key features include a 5/8″ throw latchbolt made of solid brass and a 1″ throw deadbolt crafted from stainless steel, ensuring durability. The auxiliary deadlatch pin prevents forced entry, enhancing security. Compatibility with standard mortise cylinders allows for easy integration into existing systems. The 2190 lock comes standard with the 2101-01 strike for flat jambs and supports various trim options to meet diverse design needs. Ideal for commercial settings, this interconnected lock is a reliable choice for enhancing door security without sacrificing ease of use.
Dual Force 2190 Interconnected
Dual Force Interconnected Lock, 1-1/2″ Backset, Radius Strike, Dark Bronze Faceplate, 02 Round Lever Trim, Oil Rubbed Bronze
The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike – included standard in package.
Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.
- Cylinder Backset: 1-1/8” or 1-1/2” only.
- Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
- Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
- Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
- Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
- Options: Specify trim option, lever style, finish, and strike. Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
Attributes
Commercial Residential: Commercial
Finish: 613/US10B
Installation: Commercial
Leverknob Design: 02 – Round Lever
Pack Qty: 1
Pbs Options: 10371981,40154995,40155021,40154977
Series: 2190 2290 Dual Force Interconnected Lock
Subtype: Aluminum Door Deadlocks
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
