Norton 5831xLPB 689 ADA EZ Pro Operator Instructions
Norton 5831xLPB 689 ADAEZ Pro Operator is a cutting-edge door operator kit designed for high-traffic manual openings that occasionally require automatic operation. Featuring a sleek aluminum finish, this parallel arm operator is one of the world’s only regenerative power door operators, certified by GreenCircle for its impressive ability to reduce energy consumption by up to 100% compared to traditional models. Engineered for simplicity, the ADAEZ Pro is easy to install and adaptable to tight spaces. It operates doors up to 48 inches wide and can handle weights of up to 250 lbs, making it ideal for commercial environments such as retail outlets, banks, and schools. The regenerative drive system charges an onboard battery pack, eliminating the need for external electrical power and ensuring long-lasting performance-up to 12 years in appropriate usage conditions. With adjustable opening and closing forces compliant with ANSI A156.19 and ADA guidelines, this durable operator provides a reliable solution for accessibility. Key features include on-board diagnostics for optimal performance in various conditions, a clutch mechanism for smooth operation, and weather-resistant electronics. Backed by a two-year warranty, the Norton ADAEZ Pro combines efficiency, functionality, and design to enhance any commercial setting.
ADAEZ Pro Operator

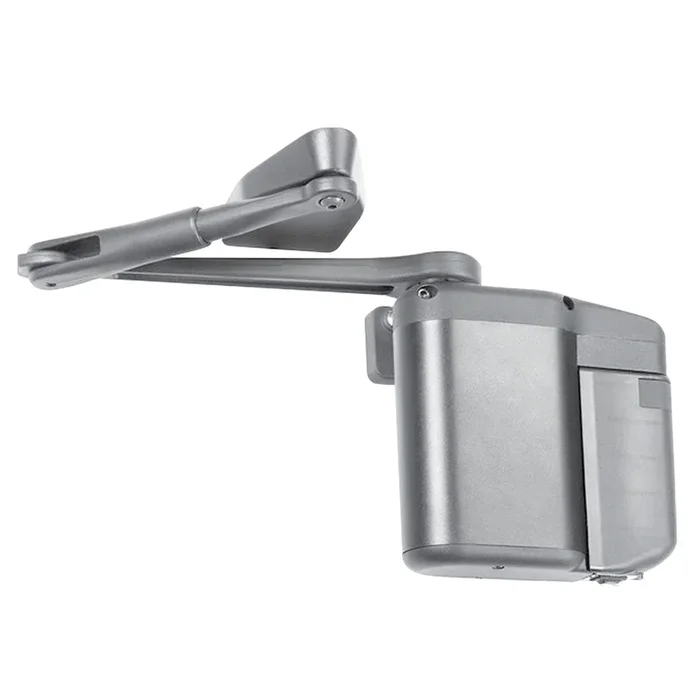

ADAEZ PRO Door Operator Kit, Push Side, (Parallel Arm Operator, Less Push Buttons), Aluminum Finish
As one of the world’s only regenerative power door operators, Norton’s ADAEZ Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.
The 5800 Series ADAEZ PRO is a compact electromechanical door operator that is simple to install and use.
This heavy-duty, low energy operator is intended for high traffic manual opening applications that occasionally require automatic operation like retail outlets, banks, schools or universities. A Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years.
- Complies with requirements of ANSI A156.19.
- Adjustable opening and closing forces that meet the provisions of ANSI 117.1 and the Americans with Disabilities Act.
- Regenerative drive system which charges the on-board battery pack when operator is opened manually and which requires no external electrical power.
- Determines door size and weight and automatically tune controller to operate within ANSI 156.19 and 117.1 standards. Also has the following adjustable functions:
- Opening/Closing Speed.
- Hold-open Time.
- Close Check.
- Opening/Closing Force.
- On-board diagnostics whichcontinually maintain control of door speed in wind or abusive environment condition.
- When operated manually, utilizes a clutch mechanism that disengages the motor gearbox assembly upon opening, then re-engages during the closing cycle to control spring force for even and smooth operation throughout the entire opening and closing cycle.
- Continues closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for two seconds and then close under spring force; if the door meets and obstruction will closing, the door will maintain a closing force of 8 lbs or less.
- Capable of operating doors up to 48” wide, weighing up to 250 lbs, and successfully tested for 1,000,000, automatic cycles.
- Operates in climates with temperatures above -40° F and has a two year warranty.
- Two stainless steel, 1-3/4” x 4-3/4” wireless, jamb mounted, push button transmitters with required signage. Locate push buttons as directed by architect and within ANSI A156.19 and 117.1 guidelines.
- Utilizes a triangular hardened steel output shaft to connect door arm with a two piece tapered coupling for superior slip resistance.
- Push button transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant.
- Integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop.
- Three architecturally finished dress covers and black powder coated frame, arms and mounting brackets.
- Environmental Product Declaration (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Arm Type: Parallel Arm
Back Check: None
Commercial Residential: Commercial
Cover: Special
Degree Hold Open: 95 Deg.
Degree Swing: 95 Deg.
Delay: Yes
Door Size: Up to 48″
Door Weight: 254 lbs. Push, 198 lbs. Pull
Finish: 689/US28
Finish Family: Matte Silver
Fire Rated: 90 Min
Fire Rating: 90 Min
Grade: Grade 1
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Self-Powered
Mounting Location: Push Side
Mounting Style: Parallel Arm
Pack Height: 10″
Pack Length: 12″
Pack Qty: 1
Pack Volume: 1440 in³
Pack Width: 12″
Physically Handicapp: Yes
Series: 5800 ADAEZ Pro
Ship Weight: 20 lbs.
Subtype: Door Operators
Type: Surface
Ul Listing: UL10c
Unit of Measure: Each
Voltage: Regenerative Drive System
Resources
- 2021 Norton Operators Catalog
- 5800 ADAEZ PRO Installation
- 5800 ADAEZ PRO Installation & Operating Instructions
- 5800 ADAEZ PRO Operator
- 5800 ADAEZ PRO Operator, Pull Side Mounted
- 5800 ADAEZ PRO Operator, Push Side Mounted
- 5800 ADAEZ PRO PLUS Sell Sheet
- 5800 ADAEZ PRO Sell Sheet
- 5800 ADAEZ Pro Cut Sheet
- 5800 Series ADAEZ Brochure
- 5800 Series ADAEZ Low Energy Door Operator – Environment Product Declaration (EPD)
- 5800 Series ADAEZ Operator Catalog
- 5800 Series Low Energy Operator Sell Sheet
- How to Index a Norton 5800 Series ADAEZ Pull Arm
- How to Install a Norton 5800 Series ADAEZ Low Energy Operator
- Norton 4800 ADAEZ Pro Catalog (2017)
- Norton Low Energy Operators Brochure
- Norton Touchless Environments Sell Sheet
