Ace Switch Lock 1-3/8in Mom – Compx Security Products

Description

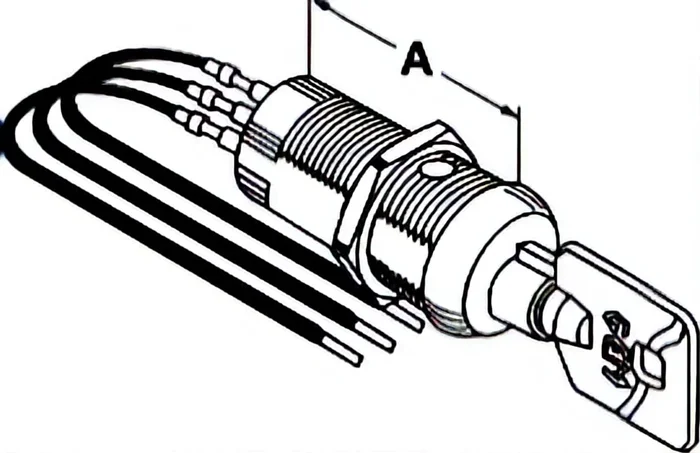

Compx MFSW3-1138-KA81 Ace Switch Lock 1-3/8in Mom Main

Compx Security Products MFSW3-1138-KA81 Ace Switch Lock is engineered to provide high security and versatility in various applications. This rekeyable switch lock is part of the GEM 1000 Series Locks and features a robust 7-pin tumbler design, ensuring optimal security for your installations. With dimensions of 1-3/8 inches, it is compact yet powerful. This UL-rated switch lock offers both maintaining and momentary contact functions, making it suitable for a wide range of electrical applications. It operates as a single pole, double throw switch and can handle voltages of 125/250 VAC with a resistive load capacity of 7A. The 10-inch lead length provides ample wiring flexibility for installation. The MFSW3-1138-KA81 allows for convenient key removal at two positions, 12:00 and 3:00, depending on the function selected. Users can choose from multiple key options, including KD and KA 27379, among others, ensuring compatibility with existing systems. This switch lock is ideal for professionals looking for a reliable and secure locking solution in cam and drawer applications. Elevate your security measures with the Compx Security Products MFSW3-1138-KA81 Ace Switch Lock, where safety meets functionality.

Ace Switch Lock 1-3/8in MomMain

Notice: The info below is not item specific.

High Security Tubular Key Locks GEM 1000 Series Locks 7-pin Tumbler.

Specifications:

• Rekeyable Switch Lock.
• UL Rated.
• Maintaining & Momentary Contact.
• Single Pole.
• Double Throw Switch.
• 125/250 VAC.
• 7A (Resistive Load).
• 10″ Lead Length.
• Dimension: 1-3/8″.

Functions:

• 1:
• Turn: 90° CW.
• Key Removable: 12:00 & 3:00.
• Function: Maintained.
• 2:
• Turn: 90° CW.
• Key Removable: 12:00.
• Function: Momentary Spring Back.

Key Options:

• KD
• KA 27379
• 27380
• 27381
• 27382
• 27383

Features

• 10″ Lead Length.
• Single Pole.
• 7A (Resistive Load).
• UL Rated.
• Double Throw Switch.
• Rekeyable Switch Lock.
• 125/250 VAC.
• Dimension: 1-3/8″.
• Maintaining & Momentary Contact.

Attributes

Alternate Codes: 104979, COMMFSW3-1138KA81, COMSW3-1138KA81, MFSW3-1138-KA81, MFSW3-1138KA81, MFSW31138KA81, SW3-1138KA81, SW31138KA81

Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets

Lock Style: Switch Lock

Size: 1-3/8″

Switch Mode: Momentary
