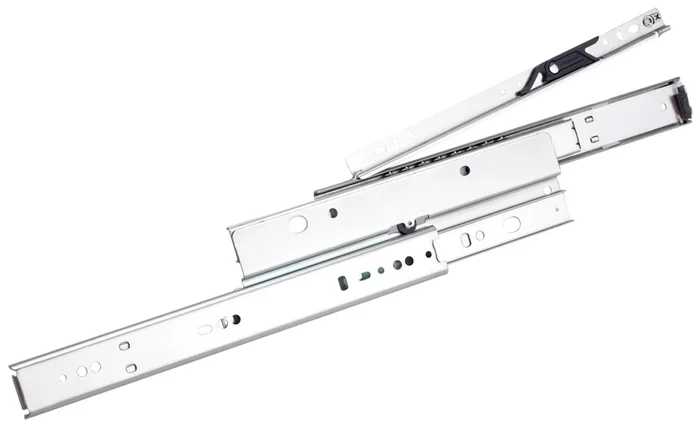

Accuride 4034 Progressive Heavy Duty Side Mounted Slide – 150 lbs Capacity

Description

Hafele 422.17.354 Accuride 4034 Heavy Duty Side Mount Slide, 1.5″ Overtravel, 150 lbs Capacity

Hafele 422.17.354 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide offers robust performance with its impressive 150 lbs weight capacity, making it an ideal choice for various file drawer applications, including desks, credenzas, lateral files, and institutional furniture. Designed with handed slides featuring steel ball-bearings, this heavy-duty slide ensures smooth operation and longevity. The side-mounted installation not only simplifies the setup process but also allows for easy drawer removal and installation, thanks to the rail-mounted design. With a full extension of 14 inches (386 mm), users can easily access contents stored deep within their drawers without hassle. The hold-in function ensures drawers stay securely in place when closed. Constructed from durable steel with a sleek zinc finish, these slides are built to withstand daily use while maintaining aesthetic appeal. Each pair supports a load-bearing capacity of 68 kg, ensuring stability and reliability. The Hafele Accuride 4034 slides are also compatible with the 32 mm system, enhancing versatility in various cabinetry applications. Each shop pack includes one pair of slides, rails, and mounting screws, while the X pack offers five pairs for larger projects. Elevate your furniture functionality with these dependable and efficient drawer slides.

Accuride – Progressive, Heavy Duty Side Mounted Slide, C4034, 1-1/2″ Overtravel, 150 lbs Weight Capacity

Shop pack, zinc, 14″

Features handed slides with steel ball-bearings Rail mounted for easy drawer installation and removal
32 mm system compatible

Attributes

Area of application: For file drawer applications in desks, credenzas, lateral files, store fixtures and institutional furniture

Bearing: Ball bearing

Color/finish: Zinc

Extension length: 386.00 mm

Holding function: Hold-in

Installation: Side mounted

Installation length: 356.00 mm

Load bearing capacity: 68.00 kg

Load bearing capacity per pair: 68.00 kg

Material: Steel

Model: C4034-12X

Mounting: Side mounted

Removing the running track: without release lever

Supplied with: Shop pack: 1 pair slides, rails & mounting screws X pack: 5 pair slides

Type of pull out: Full extension

Version: Progressive

Resources

• Accuride 4034 Mounting Instructions
• CAD data
• Installation instructions
• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.103
