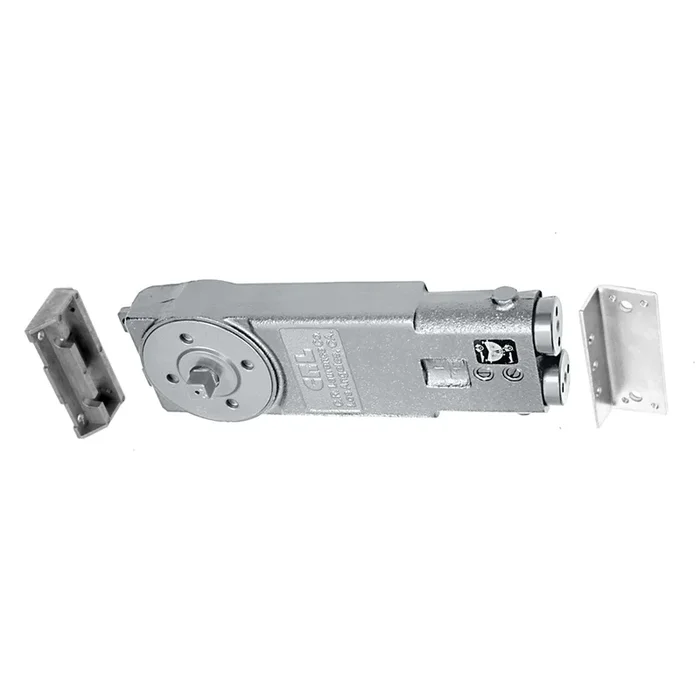

A.D.A. 5 Lb. Interior 90 No Hold Open Overhead Concealed Closer Body Only – C.R. Laurence

Description

CRL 6862 A.D.A. 5 lb Concealed Overhead Closer Body, No Hold Open

C.R. Laurence 6862 A.D.A. 5 Lb. Interior 90 No Hold Open Overhead Concealed Closer Body Only offers a reliable solution for those seeking a high-quality door closer that meets accessibility standards. This model is designed to be interchangeable with all Jackson® style overhead concealed door closers, providing versatility for various installations.With independent adjustment valves, users can easily manage both closing speed and latching speed, ensuring optimal door function tailored to specific needs. The unit comes conveniently packaged with mounting clips, templates, and instructions, making installation straightforward. Additionally, the product boasts a 5-year limited warranty and is UL listed, ensuring it meets stringent safety standards. Designed for maximum performance, the closer accommodates doors weighing up to 200 lbs and is suitable for both interior and exterior applications. It features a no hold open function that allows the door to swing open to a maximum of 90 degrees, making it ideal for high-traffic areas while promoting accessibility. Constructed with durable materials, the C.R. Laurence 6862 is recommended for aluminum and hollow metal doors, ensuring long-lasting operation. For best results, an auxiliary floor or overhead door stop is advised to prevent potential damage from over-extension. This closer is a smart investment for professionals seeking quality and reliability in their door hardware.

A.D.A. 5 Lb. Interior 90 No Hold Open Overhead Concealed Closer Body Only

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

There are two advantages to buying our
Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42″ (1.07 m)
Interior Door Width: 48″ (1.22 m)
All Doors Height: 96″ (2.44 m)

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Americans with Disabilities Act: Yes

Body Height: 1-11/16

Body Length: 11-5/8

Body Widt: 3-11/16

Body Width: 3-11/16

Case Quantity: 6

Closer Type: Overhead Concealed

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Door Height: 96

Handing: Double Acting

Includes: CRL8010FS

Maximum Door Weight: 200

Maximum Door Width – Exterior: 36

Maximum Door Width – Interior: 36

No Hold Open: 90°

Recommended Door Type: Aluminum, Hollow Metal

Shipping Limitations: None

Spindle: 1/2

Spring Size: 5

UL Listed: Yes

Resources

• Door Closer Warranty
• How to Order Overhead Concealed Closers.pdf
• Specifications Closer2.pdf
• Template OHC-800 CC HT-NA-CC-30DV-CRL.pdf
