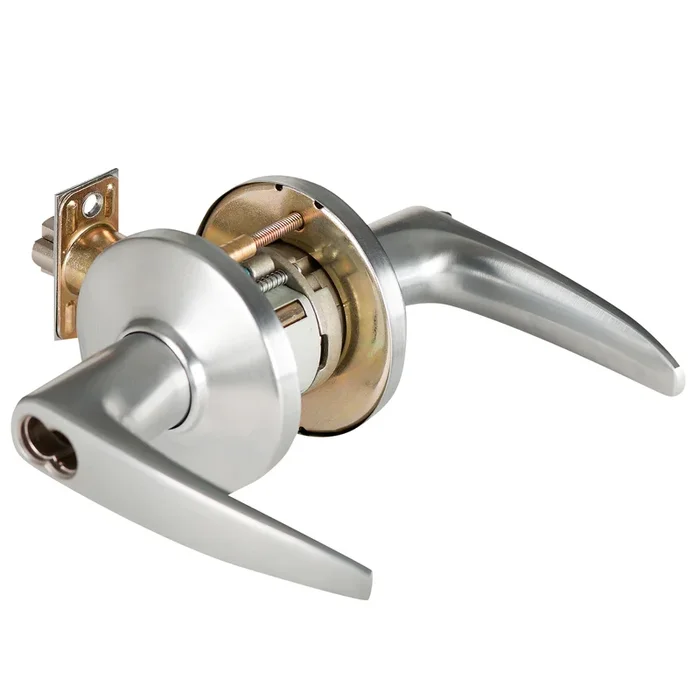

9K Series 2-3/4″ Backset 7 Pin Entry 16 Lever and D Rose Satin Chrome Finish by Best

Description

Best 9K37AB16DS3626 9K Series 2-3/4″ Backset 7-Pin Entry Lever D Rose ANSI Strike Satin Chrome

Best 9K37AB16DS3626 9K Series 2-3/4″ Backset 7 Pin Entry Lockset offers an exceptional combination of style and security for commercial applications. Designed with a satin chrome finish, this lockset enhances both aesthetic appeal and durability, making it a favored choice among building professionals. Its robust 2-3/4″ backset and ANSI A156.2 Grade 1 rating ensure the highest level of mechanical security, while the 7-pin configuration offers advanced key control. Constructed with tight tolerances, the Best 9K Series lockset is built to maintain integrity and provide unparalleled resistance to tampering. The strong through-bolt mounting studs enhance torque resistance, ensuring a secure fit in a variety of door types. Additionally, the retractor springs create excellent resistance to lever sag, maintaining a polished look over time.The lockset accommodates doors ranging from 1-3/4″ to 2-1/4″ thick and features a 2-1/8″ crossbore size with two 5/8″ through bolt holes for easy installation. For added convenience, rekeying is simplified with Best’s interchangeable core technology. With a limited one-year mechanical and finish warranty, the Best 9K37AB16DS3626 lockset stands as a reliable choice for security and performance.

9K Series 2-3/4″ Backset 7 Pin Entry 16 Lever and D Rose with ANSI Strike Less Core Satin Chrome Finish

As one of America’s favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today’s toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.

• Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
• Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
• Strong Retractor Springs Provide Resistance To Lever Sag
• Quick And Easy Rekeying With Best Interchangeable Cores
• Ansi A156.2 Grade 1

Attributes

Manufacturer surcharge: 7.0%

Ansi: F109

Ansi Function: F109 – Entry/Office

Ansi Function : Entry/Office

Application: CM

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Base Material: Brass, Bronze

Bolt Projection: 9/16″

Bolt Protection: 9/16″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 8-1/8″

Box Height Fraction: 4″

Box Width Fraction: 6-5/8″

Burglar Rated: No

Category: Mechanical Commercial Locksets

Clazz: SB

Color: Satin Chrome

Commercial Residential: Commercial

Country of Origin: China

Country of origin: USA

Crossbore Size: 2-1/8″ Bore and Two 5/8″ Through Bolt Holes

Cylinder Type: SFIC Prep Less Core

Cylinders Present: Single Cylinder

Design: 16D

Dimension: 4-3/4″ Lever and 3-1/2″ Rose

Door Range: 1-3/4″ to 2-1/4″

Door Thickness: 1-3/4″ – 2-1/4″

Finish: Satin Chrome

Finish Code: 626

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: AB-Entrance

Function Family: Entrance

Grade: Grade 1

Hand: Not Handed

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Item Class : 9K Series 2-3/4″ Backset 7 Pin Entry 16 Lever and D Rose with ANSI Strike Less Core

Item Type Keyword: Entry

Latch Backset Dim: 2-3/4″

Latch Bore Diameter: 1″

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Latch Number: 8KL3DL

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: 16 – Lever

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: 16

Leverknob Design: 16 Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 10 Year Warranty

Lock Face Size: 2-1/4″ x 1-1/8″

Manufacturer Function: Entrance

Manufacturer Function : Operated by rotating the inside knob, rotating the outside knob only when the inside push button is out, turning the outside key.

Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty

Material: Zinc Alloy with Brass Trim

Maximum Door Thickness: 2-1/4″

Minimum Door Thickness: 1-3/4″

No Of Inners: 1

No Of Pins: 7 Pin

Num Pins: 7-Jun

Number Of Inners: 1

Number Of Pins: 7 Pin Housing

Order_ Qty: 1

Origin: USA

Pack Height: 4″

Pack Height 2: 8.75″

Pack Length: 8.13″

Pack Length 2: 20.5″

Pack Qty: 1

Pack Volume: 215.31 in³

Pack Volume 2: 2242.19 in³

Pack Width: 6.63″

Pack Width 2: 12.5″

Pins: 6 to 7

Product Height: 4″

Product Length: 8.13″

Product Width: 6.63″

Projection: 2-3/4″

Rose Escutcheon: Rose

Rose Escutcheon Design: D – Rose

Rose Escutcheon Dimensions: 3-1/2″

Roseescutcheon Design: D Rose

Roseescutcheon Dimensions: 3-1/2″

Screws: Combination

Series: 9K Series

Ship Weight: 4.3 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 9K3

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: S3

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4″

Strike: S3 ANSI Strike

Strike Dimension: 1-1/4″ x 4-7/8″

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 8KS3

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: 7

Structure Function: AB

Structure Latch Number: 9K3

Structure Outside Finish: 626

Structure Outside Rose: D

Structure Outside Trim: 16

Structure Series: 9K

Structure Strike Number: S3

Subcategory: Cylindrical Locksets

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed

Ul Listing Type: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 9

Upc: 887838148735

Upc Code: 887838148735
