Description

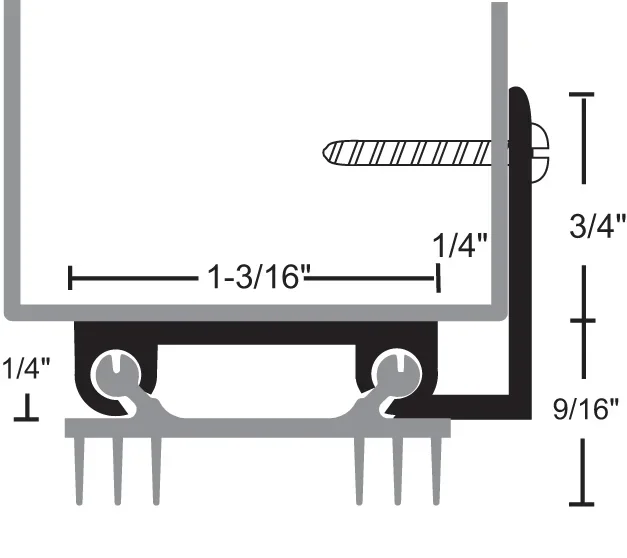

NGP 13T6A 96″ Anodized Aluminum Thermoplastic Door Shoe
NGP 13T6A 96″ Anodized Aluminum Thermoplastic Door Shoe is designed to provide exceptional durability and performance in commercial restroom environments. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door shoe ensures strength and longevity. The thermoplastic polymer, made from Polyvinyl Chloride (PVC) and environmentally friendly bio-based plasticizer, offers superior moisture resistance, making it an ideal choice for high-traffic areas. This door shoe is flame resistant and capable of withstanding a temperature range of 0°F to 140°F, ensuring reliability in various conditions. To maintain its integrity, it is designed to resist oxidative degradation caused by exposure to cold, heat, and UV light, preventing issues such as hardening and discoloration. The NGP 13T6A features a seal with a rigid base and soft vinyl fins in a dark brown finish, effectively minimizing air infiltration. It comes with #6 x 3/4″ stainless steel SMS fasteners for easy installation. With a maximum length of 48″ and an anodized aluminum finish, this door shoe not only enhances aesthetics but also provides practical functionality.For optimal performance, please note that shipping may require common carrier arrangements for items measuring 96″ or more.
96″ Anodized Aluminum Thermoplastic Door Shoe
- Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
- Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
- Anodized aluminum
- Seal with rigid base and soft vinyl fins is dark brown
- Flame resistant
- Temperature range 0°F to 140°F
- 48″ maximum length
- Moisture resistant
- #6 x 3/4″ stainless steel SMS furnished
- Aluminum alloy 6063, T5 temper
- Economical
Attributes
Ship via: No UPS – Common Carrier Only
Color: Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
Fasteners: #6 x 3/4″ stainless steel SMS furnished
Finish: Anodized aluminum
Fire Rated: Flame resistant
Length: 96.0″
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Maximum Length: 48″ maximum length
Moisture Resistant: YES
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range 0°F to 140°F
