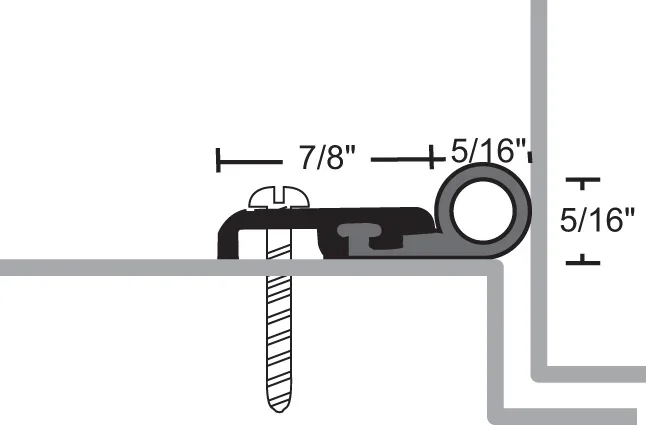

96″ Anodized Aluminum Neoprene Bulb Perimeter Seal by NGP

Description

NGP 137NA-96 Neoprene Perimeter Weatherstrip, 96″

Certifications

	CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
	POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
	AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
	ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G4 and G5 of our Gasketing catalog for test result data.
	SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
	ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

• Aluminum alloy 6063, T5 temper
• Synthetic rubber polymer blend: Chloroprene and EPDM
• Very good abrasion resistance, tensile strength and memory
• Flame resistant
• Moisture resistant
• Temperature range -20°F to 200°F
• Good resistance to ozone, sunlight and aging
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• #6 x 3/4″ stainless steel sheet metal screws furnished
• Screw holes slotted for adjustment
• Neoprene is black
• Anodized aluminum
• Very Good Abrasion Resistance, Tensile Strength and Memory
• Flame-Resistant
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• Good Resistance to Ozone, Sunlight and Aging
• Color is Black
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• Anodized Aluminum
• Temperature Range -81°F to 275°F
• #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
• Screw Holes Slotted for Adjustment
• Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix

Attributes

Ship via: No UPS – Common Carrier Only

BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold

Color: Color is Black

Commercial Residential: Commercial

Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished

Finish: Anodized Aluminum

Finish : Milled Aluminum

Finish Family: Matte Silver

Fire Rated: Flame-Resistant

Fire Rating: 3 Hours

Flange Material: Anodized Aluminum

Hardware: #6 x 3/4″ Stainless Steel Sheet Metal Screws

Insert Color: Black

Insert Material: Neoprene

Installation: Commercial

Length: 96.0″

Material: Aluminum Alloy 6063, T5 Temper

Moisture Resistant: YES

Pack Qty: 1

Resistance: Good Resistance to Ozone, Sunlight and Aging

Series: NGP Gasketing

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.

Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Standards: ANSI/UL10C (Catgory J), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.22

Temperature Range: Temperature Range -81°F to 275°F

Type: Perimeter Door Seal

Ul Listing: UL10C

Unit of Measure: Each
