96″ Aluminum Carpet Edge, 3/8″ x 2-1/2″ – NGP Threshold Solutions

Description

NGP 417 96″ Aluminum Carpet Edge, 3/8″ x 2-1/2″

NGP 417 96″ Aluminum Carpet Edge, 3/8″ x 2-1/2″ is a durable solution designed to provide a seamless transition between flooring surfaces. Constructed from aluminum alloy 6063 in T5 temper, this carpet edge measures 2-1/2″ wide and stands 3/8″ tall, making it suitable for various commercial applications. The smooth top surface enhances aesthetics while ensuring safety in high-traffic areas. Weighing only .50 lbs./ft., this carpet edge is lightweight yet robust, with a typical wall thickness of .188″, providing reliable support without compromising on structural integrity. It comes with #10 x 1-1/2″ FH zinc plated wood screws for easy installation, and the mill finish offers a sleek, modern look that complements any decor. This product is ADA compliant, ensuring accessibility as required by the ADA Standard for Accessible Design. It also meets stringent fire safety standards, being certified by UL to comply with NFPA 80 and NFPA 252 for fire doors rated up to 3 hours. When ordering, please note that items measuring 96″ or more may incur additional shipping fees or require common carrier transport. Choose NGP 417 for a professional finish that stands the test of time.

96″ Aluminum Carpet Edge, 3/8″ x 2-1/2″

• #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
• Mill finish
• Typical wall thickness .188″

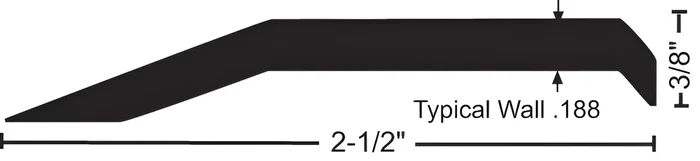

• 2-1/2″ wide x 3/8″ tall
• Smooth top
• Weight: .50 lbs./ft.
• Aluminum alloy 6063, T5 temper

Attributes

Ship via: No UPS – Common Carrier Only

Dimensions: 2-1/2″ wide x 3/8″ tall

Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds

Finish: Mill finish

Length: 96.0″

Material: Aluminum alloy 6063, T5 temper

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Wall Thickness: Typical wall thickness .188″

Weight: Weight: .50 lbs./ft.
