CRL 8960A 90 Hold Open Concealed Closer Package for End-Load A.D.A. Installation
C.R. Laurence 8960A 90 Hold Open Overhead Concealed Closer Package for End-Load Installation A.D.A. “A” Package offers a robust solution for architectural door closing needs. Designed specifically for doors with a 1″ deep top rail, this center-hung system is engineered to provide smooth operation while complying with A.D.A. specifications. This comprehensive package includes a Medium Spring Size Door Closer, mounting clips, a Type “A” End-Load Arm, and an adjustable dual-purpose bottom pivot set, allowing for versatile floor or threshold mounting. The independent adjustment valves enable precise control over both closing and latching speeds, ensuring reliability in high-traffic areas. With a hold-open feature at 90 degrees, this closer enhances accessibility without compromising on functionality. Constructed from durable aluminum and U.L. listed, the 8960A is built to last, backed by a five-year limited warranty. It’s designed for maximum door weights of up to 200 lbs and widths not exceeding 36″. For optimal performance, an auxiliary door stop is recommended to prevent damage from over-extension. Whether you are a building professional or a knowledgeable homeowner, the C.R. Laurence 8960A Closer Package provides an ideal blend of style, strength, and safety for your door systems.
90 Hold Open Overhead Concealed Closer Package for End-Load Installation A.D.A. “A” Package
- A Center-Hung End-Load Hardware Package for Doors with 1″ Deep Top Rails
- For Doors with 1″ (25 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- U.L. Listed with a Five Year Limited Warranty
These

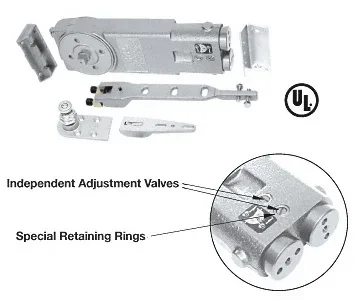

CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type “A” End-Load Arm, and a “DP” Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4″ x 4″ (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36″ (914 mm).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Arm Type: End Load
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1
Bottom Pivot Type: Dual Purpose Pivot
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Handing: Double Acting
Hold Open: 90°
Includes: CRL6960, CRL8010FS, CRL8010A, CRL8010DP
Material: Aluminum
Maximum Door Weight: 200
Package Type: End Load ADA A
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Shipping Limitations: None
Similar: CRL8760A
Spindle: 1/2
Spring Size: 8.5
Top Rail Depth: 1
Type: Center Hung
UL Listed: Yes
