Description

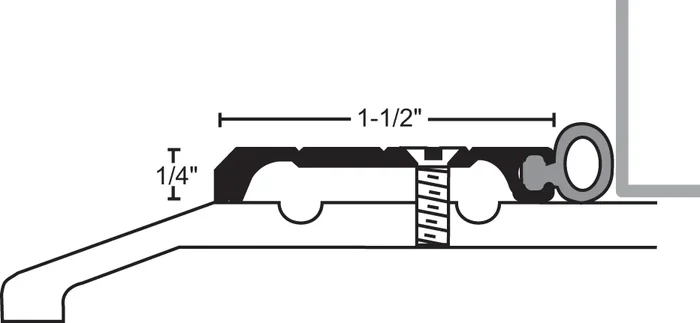

NGP 700ES STOP STRIP 84″ Threshold Bumper Seal Stop Strip
NGP 700ES STOP STRIP 84″ Threshold Bumper Seal Stop Strip is designed for optimal performance and durability in commercial applications. Crafted from high-quality aluminum alloy 6063 with T5 temper, this stop strip stands at a compact 1/4″ tall, providing a discreet yet effective barrier against the elements. When paired with our saddle threshold, the NGP 700ES ensures a tight seal against the door, enhancing weather resistance and improving energy efficiency in your building. Weighing only 0.20 lbs./ft., it’s lightweight yet robust, making installation straightforward with the included #10 self-tapping machine screws. The black silicone component adds an aesthetic touch while maintaining functionality. This product is certified by UL to meet various standards, including compliance with NFPA 80 and NFPA 252 for fire door applications, making it suitable for both hollow metal and wood fire doors rated for extended periods. Additionally, it has been air infiltration tested to ASTM E283, ensuring that it meets rigorous performance criteria. Whether you’re a building professional or a knowledgeable homeowner, the NGP 700ES Stop Strip is an essential addition to any restroom partition hardware selection, combining practicality with compliance and durability.
84″ Threshold Bumper Seal Stop Strip
- Mill aluminum
- 1/4″ tall
- #10 self-tapping machine screws included
- Weight: .20 lbs./ft.
- Silicone is black
- Works in conjunction with our saddle threshold to provide a seal against the door, providing weather resistance
- Aluminum alloy 6063, T5 temper
Attributes
Color: Silicone is black
Fasteners: #10 self-tapping machine screws included
Height: 1/4″ tall
Length: 84.0″
Material: Mill aluminum
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Weight: Weight: .20 lbs./ft.
