NGP 303NDKB 84″ DKB Aluminum Spring Adjustable Neoprene Perimeter Seal
NGP 303NDKB 84″ DKB-finish Aluminum Spring Adjustable Neoprene Perimeter Seal delivers exceptional performance for your commercial restroom applications. Constructed from durable Aluminum Alloy 6063 with a T5 temper, this perimeter seal is designed to withstand various environmental conditions. Its synthetic EPDM rubber, embedded in a polypropylene thermoplastic matrix, ensures excellent abrasion resistance, tensile strength, and memory retention. This seal is flame-resistant and moisture-resistant, making it suitable for diverse settings. With a temperature range of -81°F to 275°F, it remains reliable under extreme conditions. Furthermore, it boasts good resistance to ozone, sunlight, and aging, ensuring longevity and durability. The spring-loaded design maintains consistent pressure for an effective seal, while adjustment screws positioned on 10″ centers allow for easy modifications without the need to reposition mounting locations. Certified by BHMA to ANSI/BHMA A156.22 performance tests for heat and cold, the NGP 303NDKB is a trusted choice for professionals seeking quality and reliability. Available in a sleek dark bronze finish, this perimeter seal not only enhances performance but also complements any restroom aesthetic. Enhance your restroom partitions with NGP’s high-quality hardware solutions for optimal functionality and design.
84″ DKB-finish Aluminum Spring Adjustable Neoprene Perimeter Seal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Temperature Range -81°F to 275°F
- Dark Bronze Finish
- Spring-Loaded to Maintain Pressure for the Most Effective Seal
- Color is Black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished

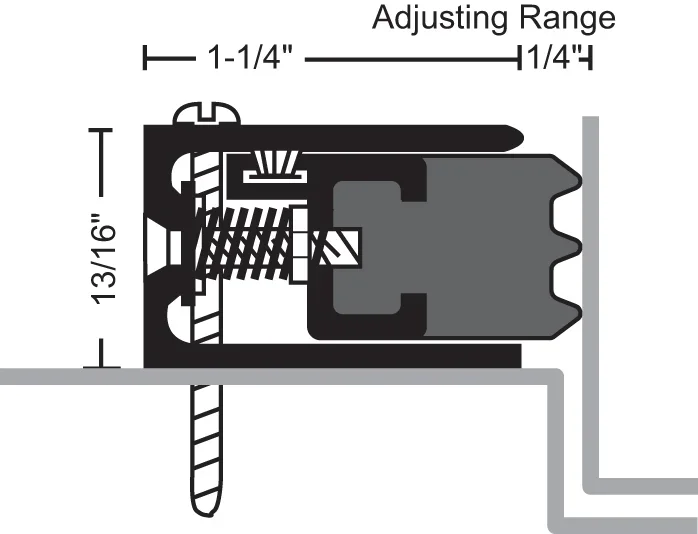

- Adjustment Screws on 10″ Centers Allow Adjustment without Re-Positioning Mounting Location
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 84.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
