Description
NGP 700EUDKB 84″ DKB Aluminum Polyurethane Perimeter Seal
NGP 700EUDKB 84″ DKB-finish Aluminum Polyurethane Perimeter Seal offers a robust solution for enhancing the durability and functionality of your restroom partitions. Crafted from aluminum alloy 6063 with T5 temper, this perimeter seal ensures exceptional abrasion resistance and tensile strength, making it suitable for high-traffic environments. The polyurethane material, finished in a sleek dark bronze, is not only aesthetically pleasing but also provides excellent moisture resistance. Designed to withstand extreme temperatures ranging from -80°F to 200°F, this seal is flame resistant, ensuring safety and compliance in your building’s specifications.Installation is made simple with self-drilling #8 (Tek type) screws included, and the jamb sections feature slotted holes for easy adjustments. The innovative design allows for the mounting of rim exit device strikes without the need for notching the gasketing, streamlining the installation process.Additionally, the head section is not drilled, allowing for closer mounting without breaks in the seal. Certified by UL for fire safety standards, this perimeter seal is an ideal choice for both hollow metal and wood fire doors rated for up to 3 hours. Enhance the integrity of your restroom partitions with the NGP 700EUDKB Perimeter Seal, a dependable choice for building professionals.

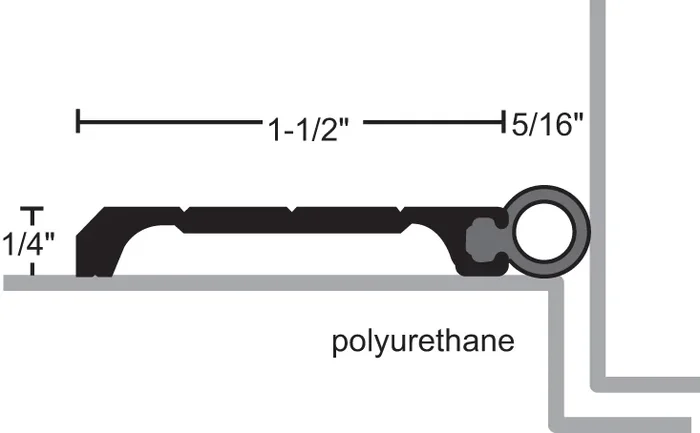

84″ DKB-finish Aluminum Polyurethane Perimeter Seal
- Allows mounting of rim exit device strikes without notching gasketing
- Self drilling #8 (Tek type) screws furnished
- Flame resistant
- Jamb sections furnished with slotted holes for adjustment
- Polyurethane is black
- No break in seal for closer mounting
- Dark bronze finish
- Temperature range -80°F to 200°F
- Head section not drilled
- Moisture resistant
- Closer and/or overhead holder attach to frame through weatherseal section. Install seal first
- Aluminum alloy 6063, T5 temper
- Very good abrasion resistance, tensile strength, memory and UV resistance
Attributes
Color: Polyurethane is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Finish: Dark bronze finish
Fire Rated: Flame resistant
Length: 84.0″
Material: Aluminum alloy 6063, T5 temper
Moisture Resistant: YES
Resistance: Very good abrasion resistance, tensile strength, memory and UV resistance
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature range -80°F to 200°F
