Description
NGP 600A (SET) 84″ Anodized Aluminum Surface-Mount Brush Astragal

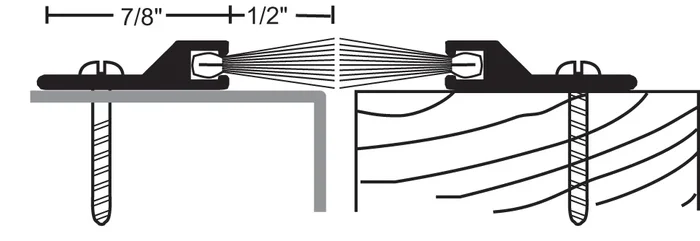

NGP 600A (SET) 84″ Anodized Aluminum Surface Mounted Brush Astragal is a high-performance solution designed to enhance the efficiency and durability of your restroom partitions. Crafted from aluminum alloy 6063 with T5 temper, this astragal features a synthetic polymer insert made from gray polyamide, ensuring excellent abrasion resistance, flexibility, and memory. With a temperature range of -70°F to 425°F, this product is built to withstand extreme conditions while remaining moisture-resistant, making it ideal for commercial restroom applications. The NGP 600A is BHMA Certified to ANSI/BHMA A156.22 Performance Tests for heat and cold, ensuring its reliability in various environments.The astragal comes with #6 x 3/4″ stainless steel sheet metal screws for easy installation, and the slotted screw holes allow for precise adjustment. It is also REACH and RoHS compliant, meeting essential environmental standards.Please note that while this product is effective against abrasion and moisture, it is not effective against water penetration. The NGP 600A is sold as a set to include two pieces, providing an efficient solution for your partition needs. Upgrade your restroom facilities with the durability and functionality of NGP’s expertly engineered astragal system.
84″ Anodized Aluminum Surface Mounted Brush Astragal
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Temperature range -70°F to 425°F
- REACH and RoHS compliant
- Not effective against water penetration
- Anodized aluminum
- Retains insecticides well
- Order as set to receive two pieces
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Moisture resistant
- Nylon is gray
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Screw holes are slotted for adjustment
- Excellent abrasion resistance, flexibility and memory
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon is gray
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Length: 84.0″
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
