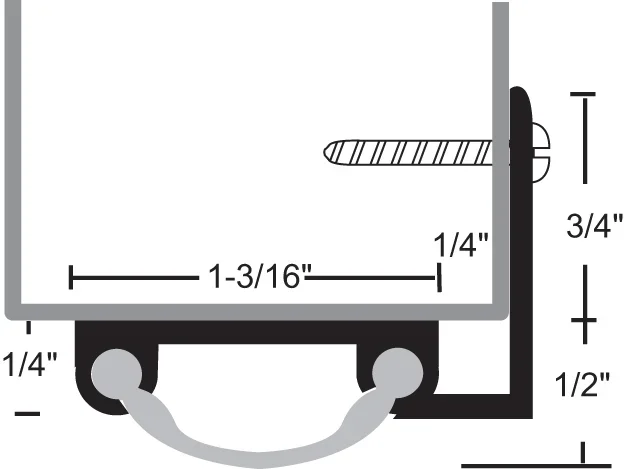

NGP 13VA 84″ Anodized Aluminum Vinyl Door Shoe
NGP 13VA 84″ Anodized Aluminum Smooth Vinyl Door Shoe combines durability and functionality to enhance your commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door shoe is built to withstand the rigors of daily use while maintaining an elegant appearance. The smooth vinyl, made from thermoplastic polymer Polyvinyl Chloride (PVC) with an environmentally friendly bio-based plasticizer, offers moisture resistance and flame-resistant properties, making it ideal for various environments. With a temperature range of 0°F to 140°F, it remains reliable under varying conditions.Installation is straightforward, thanks to the provided #6 x 3/4″ stainless steel sheet metal screws and slotted screw holes that allow for easy adjustments. The sleek black vinyl complements the anodized aluminum finish, ensuring a professional look that fits seamlessly into any restroom setting. Moreover, this product is certified by UL for fire safety standards, providing peace of mind for high-traffic areas. NGP 13VA is not only economical but also a long-lasting solution for your restroom partition hardware needs, effectively guarding against oxidative degradation, moisture, and fire hazards.
84″ Anodized Aluminum Smooth Vinyl Door Shoe
- Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
- Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
- Anodized aluminum
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Flame resistant
- Temperature range 0°F to 140°F
- Moisture resistant
- Vinyl is black
- Aluminum alloy 6063, T5 temper
- Economical
Attributes
Color: Vinyl is black
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Fire Rated: Flame resistant
Length: 84.0″
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Moisture Resistant: YES
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range 0°F to 140°F
