84″ Anodized Aluminum Silicone Dense Bulb Perimeter Seal – NGP

Description

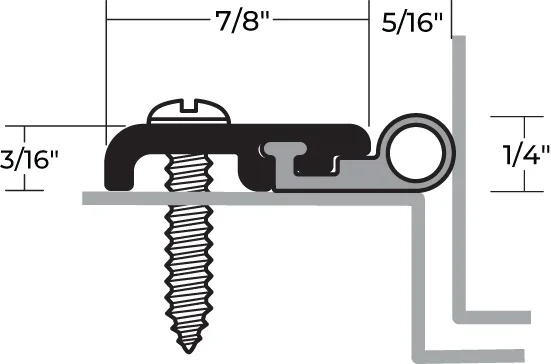

NGP 137SA 84″ Anodized Aluminum Silicone Bulb Perimeter Seal

NGP 137SA 84″ Anodized Aluminum Silicone Dense Bulb Perimeter Seal is engineered to provide superior performance in demanding environments. Constructed from Aluminum Alloy 6063 with T5 Temper, this seal is both durable and lightweight. The dense silicone, made from synthetic rubber polymer (Siloxane), offers excellent flexibility and memory, ensuring a reliable fit and long-lasting performance. This perimeter seal excels in harsh conditions, with a remarkable temperature range of -100°F to 500°F, maintaining its flexibility even in extreme temperatures. Its flame-resistant and moisture-resistant properties make it an ideal choice for applications involving FM200 or Halon fire suppression systems.Furthermore, the NGP 137SA is BHMA certified to ANSI/BHMA A156.22 performance tests, demonstrating exceptional resistance to ozone, UV light, and aging. The included #6 x 3/4″ stainless steel sheet metal screws come with slotted holes for easy adjustment during installation. With its anodized aluminum finish and sleek black silicone, this perimeter seal not only performs exceptionally but also enhances the overall aesthetic of your restroom partitions. Trust NGP to deliver reliable hardware solutions that meet the highest standards of quality and performance.

84″ Anodized Aluminum Silicone Dense Bulb Perimeter Seal

• Flame-Resistant
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• Dense Silicone is Black
• Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
• Excellent Flexibility and Memory
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• Anodized Aluminum
• Excellent Resistance to Ozone, UV and Aging
• #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
• Synthetic Rubber Polymer: Siloxane
• Recommended for Areas Using FM200 or Halon Fire Suppression Systems
• Screw Holes Slotted for Adjustment

Attributes

Application: Excellent Flexibility and Memory

BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold

Color: Dense Silicone is Black

Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished

Finish: Anodized Aluminum

Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems

Length: 84.0″

Material: Synthetic Rubber Polymer: Siloxane

Moisture Resistant: YES

Resistance: Excellent Resistance to Ozone, UV and Aging

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.

Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
