Description

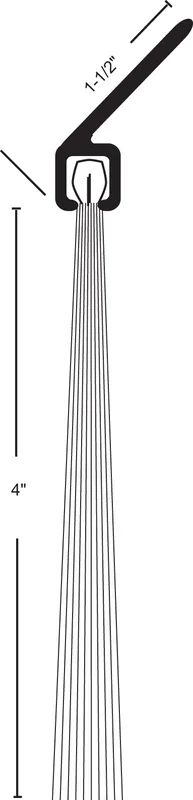

NGP I-624A 84″ Anodized Aluminum Nylon Brush Seal
NGP I-624A 84″ Anodized Aluminum Nylon Brush Seal offers a robust solution for maintaining the integrity of fire-rated doors. Constructed from aluminum alloy 6063 with T5 temper, this durable brush seal ensures excellent abrasion resistance and flexibility, making it ideal for high-traffic environments. The synthetic polymer nylon brush is gray and designed to withstand a temperature range of -70°F to 425°F, providing reliable performance in various conditions. This brush seal is moisture resistant, effectively retaining insecticides and enhancing door functionality. It is compatible with fire-rated metal doors for up to 3 hours and wood doors for up to 60 minutes, ensuring compliance with stringent safety standards. Each unit comes with #6 x 3/4″ stainless steel sheet metal screws, thoughtfully furnished with slotted screw holes for easy adjustment during installation. The NGP I-624A is both REACH and RoHS compliant, making it an environmentally conscious choice. Its anodized aluminum finish not only complements the aesthetic of any restroom but also provides additional resistance to corrosion. Elevate your commercial restroom with this essential partition hardware that combines practical features with superior quality.
84″ Anodized Aluminum Nylon Brush Seal
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Temperature range -70°F to 425°F
- REACH and RoHS compliant
- Not effective against water penetration
- Anodized aluminum
- Nylon brush is gray
- Retains insecticides well
- Screw holes slotted for adjustment
- Moisture resistant
- For use on fire-rated metal doors up to 3 hours or wood doors up to 60 minutes
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Excellent abrasion resistance, flexibility and memory
Attributes
Application: For use on fire-rated metal doors up to 3 hours or wood doors up to 60 minutes
Color: Nylon brush is gray
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Length: 84.0″
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range -70°F to 425°F
