Description

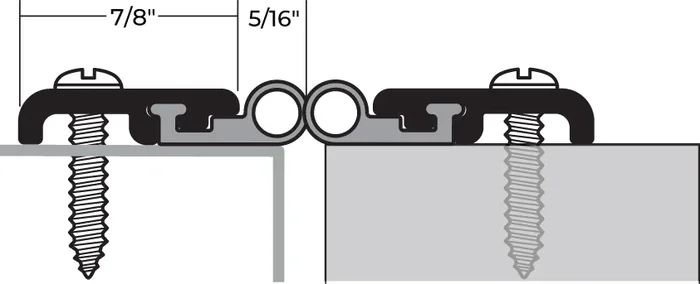

NGP 137NA (SET) 84″ Anodized Aluminum Smoke-Rated Neoprene Astragal Instructions
NGP 137NA (SET) 84″ Anodized Aluminum Neoprene Smoke-Rated Astragal is the ideal solution for enhancing fire safety and efficiency in commercial spaces. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, this astragal offers exceptional durability and strength. It features a synthetic EPDM rubber core within a polypropylene thermoplastic matrix, providing outstanding abrasion resistance, tensile strength, and memory. Designed to withstand extreme conditions, the NGP 137NA operates effectively in temperatures ranging from -81°F to 275°F. Its flame-resistant and moisture-resistant properties ensure longevity, while its good resistance to ozone, sunlight, and aging makes it suitable for various environments. This product complies with crucial safety standards, including IBC, NFPA 80, NFPA 105, and NFPA 252, ensuring that the gap at the meeting edge of fire-labeled doors does not exceed 1/8″. Each set includes two pieces, and the screw holes are slotted for easy adjustment, facilitating a straightforward installation process. Finished in sleek black anodized aluminum, the NGP 137NA combines functionality with an aesthetically pleasing design, making it an excellent addition to any commercial restroom partition hardware lineup.
84″ Anodized Aluminum Neoprene Smoke-Rated Astragal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8″
- Fire-Rated Astragal Seals Cannot Replace any Astragal Required on the Door by the Door Manufacturer to Maintain its Fire Label
- Order as Set to Receive Two Pieces
- Temperature Range -81°F to 275°F
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
- #6 x 3/4″ Stainless Steel SMS Furnished
- Color is Black
- Anodized Aluminum
- Screw Holes Slotted for Adjustment
Attributes
Color: Color is Black
Fasteners: #6 x 3/4″ Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8″
Length: 84.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature Range -81°F to 275°F
