84″ Anodized Aluminum Adjustable Silicone Perimeter Seal – NGP

Description

NGP 106SA 84″ Anodized Aluminum Adjustable Silicone Perimeter Seal

NGP 106SA 84″ Anodized Aluminum Adjustable Silicone Perimeter Seal delivers exceptional performance and durability for commercial restroom applications. Constructed from aluminum alloy 6063 with a T5 temper, this seal combines strength and resilience, ensuring longevity in high-traffic environments. The synthetic rubber polymer, Siloxane, offers excellent flexibility and memory, making it ideal for maintaining a tight seal even in extreme temperatures ranging from -100°F to 500°F. This perimeter seal is flame and moisture resistant, providing added safety in areas utilizing FM200 or Halon Fire Suppression Systems. Its design includes adjustment screws positioned on 10″ centers, allowing for easy adjustments without the need to reposition the mounting location. The black silicone enhances both functionality and aesthetics, while the anodized aluminum finish ensures resistance to corrosion and aging from ozone and UV exposure. NGP 106SA is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, demonstrating its reliability and compliance with industry standards. This versatile product comes with #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS fasteners, facilitating straightforward installation. Ideal for both building professionals and knowledgeable homeowners, the NGP 106SA is the perfect solution for robust and effective restroom partition sealing.

84″ Anodized Aluminum Adjustable Silicone Perimeter Seal

• Excellent flexibility and memory
• Flame resistant
• Synthetic rubber polymer: Siloxane
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

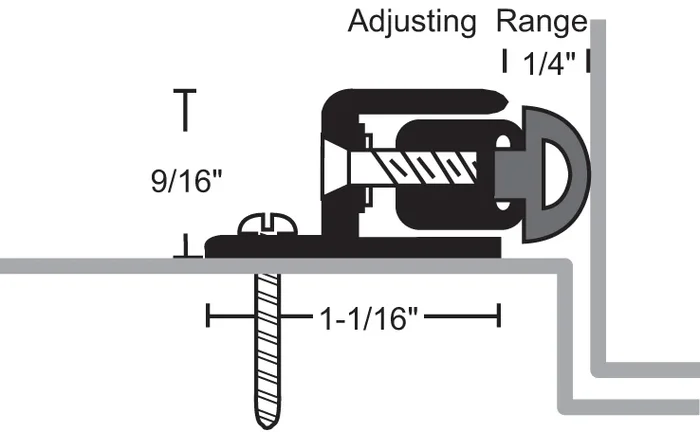

• Adjustment screws on 10″ centers allow adjustment without re-positioning mounting location
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Anodized aluminum
• #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS furnished
• Excellent resistance to ozone, UV and aging
• Moisture resistant
• Recommended for areas using FM200 or Halon Fire Suppression Systems
• Silicone is black
• Aluminum alloy 6063, T5 temper
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold and Energy Performance

Attributes

Application: Excellent flexibility and memory

BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

Color: Silicone is black

Fasteners: #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS furnished

Finish: Anodized aluminum

Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems

Length: 84.0″

Material: Synthetic rubber polymer: Siloxane

Moisture Resistant: YES

Resistance: Excellent resistance to ozone, UV and aging

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
